Vehicle Exploded View - APRILIA SR 125 STORM TT BSIV NOABS 2020 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

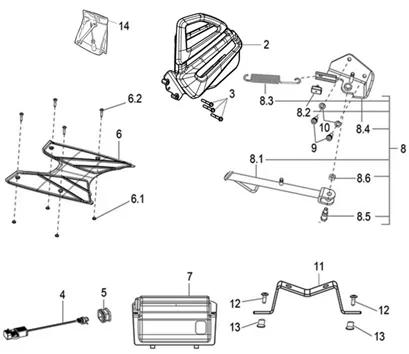

Cadre : 02.29 ACCESSOIRES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1246/SR_125_STORM_TT_BSIV_NOABS_2020_(EMEA)_02.29.png)
2 |
SKIT940031R-COMPLETE SAREE COVER More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/6/7/img/66367.jpg)
3 |
SCREW FLANGE TH (6X35) OEM PIAGGIO COMMON A LA RANGE-414838 More informationQuantity required : 3 |
||||||
|
4 |
PRISE USB OEM PIAGGIO 50 TYPHOON 2018 >/APRILIA 50 SR MOTARD 2018 > COMMON WITH AUTRES VEHICULES-1D003323 More informationQuantity required : 1 |
||||||
|
5 |
1B001591-GUIDE CABLES More informationQuantity required : 1 |
||||||
|
6 |
1B004106-MAT More informationQuantity required : 1 |
||||||
|
6a |
1B004131-SPACER More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/6/8/img/73368.jpg)
6b |
SCREW TORX (6X30) HEAD BOMBEE OEM PIAGGIO COMMON A LA RANGE-CM179303 More informationQuantity required : 4 |
||||||
|
7 |
1B004583-COVER BATTERY More informationQuantity required : 1 |
||||||
|
8 |
1C003128 - BEQUILLE LATERALE More informationQuantity required : 1 |
||||||
|
8a |
1C002229 - BEQUILLE LATERALE More informationQuantity required : 1 |
||||||
|
8b |
164245-BUFFER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/2/7/6/7/img/152767.jpg)
8c |
SPRING STAND OEM PIAGGIO 50 TYPHOON 2T 2018 >-1C001871 More informationQuantity required : 1 |
||||||
|
8d |
1C002231 - BRIDE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/9/7/2/4/img/79724.jpg)
8e |
SHAFT OF SIDE STAND OEM COMMON A LA RANGE-560619 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/5/5/img/65455.jpg)
8f |
NUT (M8) OEM PIAGGIO COMMON A TOUTE LA RANGE-020008 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/2/4/6/0/img/82460.jpg)
9 |
SCREW BTR (8X20) OEM PIAGGIO COMMON A LA RANGE-599009 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/8/img/65418.jpg)
10 |
WASHER (8, 15X13, 75X4, 5) OEM PIAGGIO COMMON A LA RANGE-016408 More informationQuantity required : 2 |
||||||
|
11 |
1B003542-BRACKET More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/0/8/img/65408.jpg)
12 |
SCREW CRUCIFORME (4X12) OEM PIAGGIO COMMON A LA RANGE-015996 More informationQuantity required : 2 |
||||||
|
13 |
1B000951-BUSH More informationQuantity required : 2 |
||||||
|
14 |
1C002659-TROUSSE A OUTILS More informationQuantity required : 1 |
