Vehicle Exploded View - APRILIA SR 125 STORM TT BSIV NOABS 2020 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

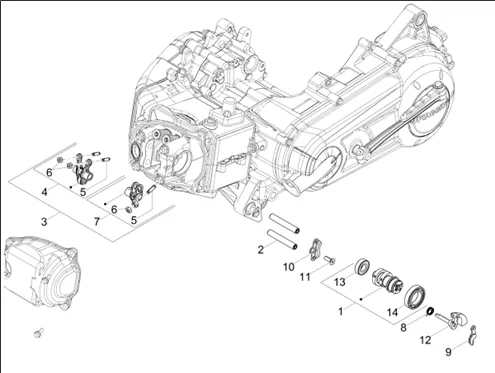

Moteur : 01.08 GROUPE SUPPORT BALANCIERS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1246/SR_125_STORM_TT_BSIV_NOABS_2020_(EMEA)_01.08.png)
1 |
SPB015309-CAMSHAFT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/3/3/7/img/110337.jpg)
2 |
SHAFT OF CULBUTEUR OEM APRILIA 50 SXR 2021 >-B017113 More informationQuantity required : 2 |
||||||
|
3 |
83062R BILANCIERE More informationQuantity required : 1 |
||||||
|
4 |
B017425-BALANCIER ASPIR. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/1/4/5/img/110145.jpg)
5 |
SCREW REGLAGE DE VALVE OEM PIAGGIO 50 SXR APRILIA 2021 >/THREE-WHEELER APE CALESSINO 2013 >-B017323 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/9/3/4/img/109934.jpg)
6 |
NUT DE SERRAGE SCREW CULBUTEUR OEM APRILIA 50 SXR 2021 >-B017431 More informationQuantity required : 2 |
||||||
|
7 |
B017426-BALANCIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/1/1/8/img/110118.jpg)
8 |
SPRING DE DECOMPRESSION OEM PIAGGIO THREE-WHEELER APE CALESSINO 2013 > More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/9/2/0/7/img/159207.jpg)
9 |
SHEET METAL ARRET MASSE DECOMPRESSION OEM APRILIA 50 SXR 2021 >-1A008397 More informationQuantity required : 1 |
||||||
|
10 |
SHEET METAL D'ARRET D'ARBRE A CAMS OEM PIAGGIO THREE-WHEELER APE CALESSINO 2013 >-B014760 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/8/7/5/img/109875.jpg)
11 |
SCREW BTR HEAD FRAISE (6X18) OEM PIAGGIO COMMON A LA RANGE-B018946 More informationQuantity required : 1 |
||||||
|
12 |
SP1A006405 MASSELOTTE More informationQuantity required : 1 |
||||||
|
13 |
83040R BEARING More informationQuantity required : 1 |
||||||
|
14 |
83041R BEARING More informationQuantity required : 1 |
