Vehicle Exploded View - APRILIA SR 125 STORM TT BSIV NOABS 2020 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

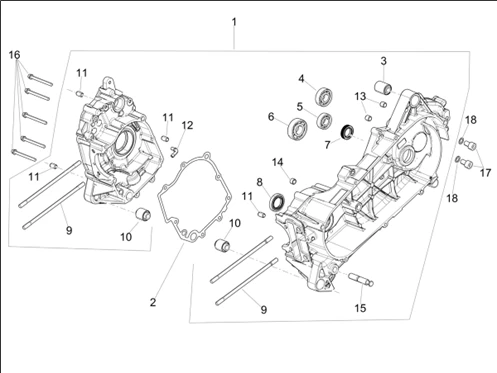

Moteur : 01.02 CARTER MOTEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1246/SR_125_STORM_TT_BSIV_NOABS_2020_(EMEA)_01.02.png)
1 |
SP1A009210 - CARTER MOTEUR COMPLET More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/6/4/0/7/0/img/164070.jpg)
2 |
1A001278 - JOINT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/9/1/0/1/img/149101.jpg)
3 |
666991 - SILENBLOC More informationQuantity required : 1 |
||||||
|
4 |
B016955 - ROULEMENT More informationQuantity required : 1 |
||||||
|
5 |
B016957 - ROULEMENT More informationQuantity required : 1 |
||||||
|
6 |
B016954 - ROULEMENT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/6/4/0/6/9/img/164069.jpg)
7 |
B019107 - JOINT SPIE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/6/4/0/6/8/img/164068.jpg)
8 |
B018139 - JOINT SPIE More informationQuantity required : 1 |
||||||
|
9 |
B014755 - GOUJON More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/7/0/4/img/66704.jpg)
10 |
SILENBLOC FOR CRANKCASE "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER ET MAXISCOOTER -486081 More informationQuantity required : 2 |
||||||
|
11 |
B015592 - CLAVETTE More informationQuantity required : 1 |
||||||
|
12 |
B015544 - RACCORD More informationQuantity required : 9 |
||||||
|
13 |
B015591 - GOUJON More informationQuantity required : 2 |
||||||
|
14 |
B017446 - JOINT More informationQuantity required : 1 |
||||||
|
15 |
668686 - PIVOT More informationQuantity required : 1 |
||||||
|
16 |
1A003068 - VIS More informationQuantity required : 9 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/8/5/img/66085.jpg)
17 |
269755 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/8/9/img/66689.jpg)
18 |
DRAIN SCREW GASKET (8,2X12X1) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -485703 More informationQuantity required : 2 |
