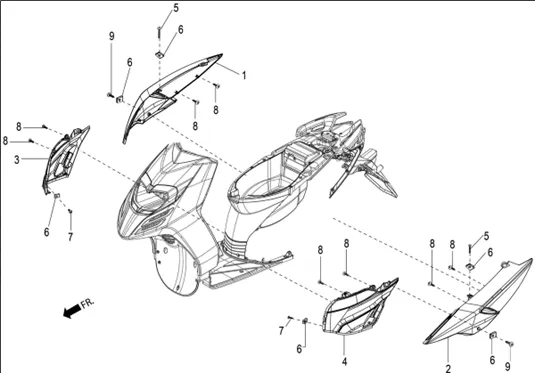

Vehicle Exploded View - APRILIA SR 125 STORM TT BSIV NOABS 2020 (EMEA) APRILIA

Cadre : 02.05 PROTECTIONS LATERALES-SPOILER
Protections laterales-spoiler
Search
BODY PANEL/SIDE PANEL REAR RIGHT OEM PIAGGIO 50 TYPHOON 2018 >/APRILIA 50 SR MOTARD 2018 > BLACK 85/B-SB003147000NL

1
P2R reference P2R reference 152792
Maker reference Maker reference SB003147000NL

BODY PANEL/SIDE PANEL REAR RIGHT OEM PIAGGIO 50 TYPHOON 2018 >/APRILIA 50 SR MOTARD 2018 > BLACK 85/B-SB003147000NL

More information

Quantity required : 1

BODY PANEL/SIDE PANEL REAR RIGHT OEM PIAGGIO 50 TYPHOON 2018 >/APRILIA 50 SR MOTARD 2018 > WHITE 544-SB003147000BR

1
P2R reference P2R reference 152794
Maker reference Maker reference SB003147000BR

BODY PANEL/SIDE PANEL REAR RIGHT OEM PIAGGIO 50 TYPHOON 2018 >/APRILIA 50 SR MOTARD 2018 > WHITE 544-SB003147000BR

More information

Quantity required : 1

SP1B003147000S9 - AILE D

1
P2R reference P2R reference 164274
Maker reference Maker reference SP1B003147000S9

SP1B003147000S9-BODY PANEL D

More information

Quantity required : 1

1
P2R reference P2R reference
Maker reference Maker reference 1B003147000LC5

1B003147 - AILE D

1
P2R reference P2R reference 152795
Maker reference Maker reference 1B003147

BODY PANEL/SIDE PANEL REAR RIGHT OEM PIAGGIO 50 TYPHOON 2018 >/APRILIA 50 SR MOTARD 2018 > BRUTE-1B003147

More information

Quantity required : 1

SP1B003148000S9 - AILE G

2
P2R reference P2R reference 164279
Maker reference Maker reference SP1B003148000S9

SP1B003148000S9-BODY PANEL G

More information

Quantity required : 1

1B003148000BR - AILE G

2
P2R reference P2R reference 164198
Maker reference Maker reference 1B003148000BR

1B003148000BR - AILE G

More information

Quantity required : 1

2
P2R reference P2R reference
Maker reference Maker reference 1B003148000LC5

1B003148 - AILE G

2
P2R reference P2R reference 152789
Maker reference Maker reference 1B003148

BODY PANEL/SIDE PANEL REAR LEFT OEM PIAGGIO 50 TYPHOON 2018 >/APRILIA 50 SR MOTARD 2018 > BRUTE-1B003148

More information

Quantity required : 1

BODY PANEL/SIDE PANEL REAR LEFT OEM PIAGGIO 50 TYPHOON 2018 >/APRILIA 50 SR MOTARD 2018 > BLACK 85/B-SB003148000NL

2
P2R reference P2R reference 152790
Maker reference Maker reference SB003148000NL

BODY PANEL/SIDE PANEL REAR LEFT OEM PIAGGIO 50 TYPHOON 2018 >/APRILIA 50 SR MOTARD 2018 > BLACK 85/B-SB003148000NL

More information

Quantity required : 1

COVER REAR RIGHT OEM PIAGGIO 50 TYPHOON 2018 >/APRILIA 50 SR MOTARD 2018 >-1B005273

3
P2R reference P2R reference 152780
Maker reference Maker reference 1B005273

COVER REAR RIGHT OEM PIAGGIO 50 TYPHOON 2018 >/APRILIA 50 SR MOTARD 2018 >-1B005273

More information

Quantity required : 1

COVER REAR LEFT OEM PIAGGIO 50 TYPHOON 2018 >/APRILIA 50 SR MOTARD 2018 >-1B005274

4
P2R reference P2R reference 152781
Maker reference Maker reference 1B005274

COVER REAR LEFT OEM PIAGGIO 50 TYPHOON 2018 >/APRILIA 50 SR MOTARD 2018 >-1B005274

More information

Quantity required : 1

SCREW AUTOTARAUDEUSE OEM PIAGGIO COMMON A LA RANGE-CM178608

5
P2R reference P2R reference 96282
Maker reference Maker reference CM178608

SCREW AUTOTARAUDEUSE OEM PIAGGIO COMMON A LA RANGE-CM178608

More information

Quantity required : 2

NUT SHEET METAL (4, 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-CM017410

6
P2R reference P2R reference 72926
Maker reference Maker reference CM017410

NUT SHEET METAL (4, 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-CM017410

More information

Quantity required : 6

SCREW OF FAIRING (3X18) OEM PIAGGIO COMMON A TOUTE LA RANGE-258249

7
P2R reference P2R reference 66028
Maker reference Maker reference 258249

SCREW OF FAIRING (3X18) OEM PIAGGIO COMMON A TOUTE LA RANGE-258249

More information

Quantity required : 2

SCREW AUTOTARAUDEUSE (3. 85X16) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-270793

8
P2R reference P2R reference 66092
Maker reference Maker reference 270793

SCREW AUTOTARAUDEUSE (3. 85X16) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-270793

More information

Quantity required : 8

SCREW AUTOTARAUDEUSE (4, 2X13) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-259349

9
P2R reference P2R reference 66035
Maker reference Maker reference 259349

SCREW AUTOTARAUDEUSE (4, 2X13) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-259349

More information

Quantity required : 2
