Vehicle Exploded View - APRILIA SR 125 STORM TT BSIV NOABS 2020 (EMEA) APRILIA

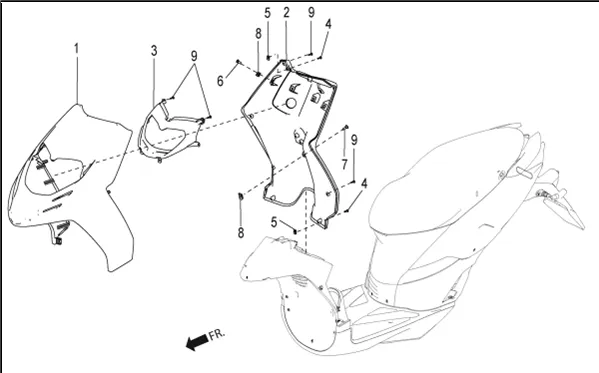

Cadre : 02.03 TABLIER AVANT
Tablier avant
Search
SP1B003140000S9 - FRONT SHIELD - MATT RED - SPD

1
P2R reference P2R reference 166107
Maker reference Maker reference SP1B003140000S9

SP1B003140000S9-FRONT SHIELD-MATT RED-SPD

More information

Quantity required : 1

FRONT PANEL FRONT OEM PIAGGIO 50 TYPHOON 2018 >/APRILIA 50 SR MOTARD 2018 > WHITE 544-SB003140000BR

1
P2R reference P2R reference 155139
Maker reference Maker reference SB003140000BR

FRONT PANEL FRONT OEM PIAGGIO 50 TYPHOON 2018 >/APRILIA 50 SR MOTARD 2018 > WHITE 544-SB003140000BR

More information

Quantity required : 1

FRONT PANEL FRONT OEM PIAGGIO 50 TYPHOON 2018 >/APRILIA 50 SR MOTARD 2018 > BRUTE-1B003140

1
P2R reference P2R reference 152770
Maker reference Maker reference 1B003140

FRONT PANEL FRONT OEM PIAGGIO 50 TYPHOON 2018 >/APRILIA 50 SR MOTARD 2018 > BRUTE-1B003140

More information

Quantity required : 1

1
P2R reference P2R reference
Maker reference Maker reference 1B003140000LC5

FRONT PANEL FRONT OEM PIAGGIO 50 TYPHOON 2018 >/APRILIA 50 SR MOTARD 2018 > BLACK 85/B-SB003140000NL

1
P2R reference P2R reference 152773
Maker reference Maker reference SB003140000NL

FRONT PANEL FRONT OEM PIAGGIO 50 TYPHOON 2018 >/APRILIA 50 SR MOTARD 2018 > BLACK 85/B-SB003140000NL

More information

Quantity required : 1

LEG SHIELD INNER OEM PIAGGIO 50 TYPHOON 2018 >/APRILIA 50 SR MOTARD 2018 >-1B007748

2
P2R reference P2R reference 170765
Maker reference Maker reference 1B007748

LEG SHIELD INNER OEM PIAGGIO 50 TYPHOON 2018 >/APRILIA 50 SR MOTARD 2018 >-1B007748

More information

Quantity required : 1

GARNITURE LAMP UNIT OEM PIAGGIO 50 TYPHOON 2018 >/APRILIA 50 SR MOTARD 2018 >-1B003141

3
P2R reference P2R reference 152774
Maker reference Maker reference 1B003141

GARNITURE LAMP UNIT OEM PIAGGIO 50 TYPHOON 2018 >/APRILIA 50 SR MOTARD 2018 >-1B003141

More information

Quantity required : 1

SCREW OF FAIRING (3X18) OEM PIAGGIO COMMON A TOUTE LA RANGE-258249

4
P2R reference P2R reference 66028
Maker reference Maker reference 258249

SCREW OF FAIRING (3X18) OEM PIAGGIO COMMON A TOUTE LA RANGE-258249

More information

Quantity required : 13

NUT SHEET METAL (4, 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-CM017410

5
P2R reference P2R reference 72926
Maker reference Maker reference CM017410

NUT SHEET METAL (4, 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-CM017410

More information

Quantity required : 13

SCREW TBC (6X16) OEM PIAGGIO COMMON A LA RANGE-272836

6
P2R reference P2R reference 66117
Maker reference Maker reference 272836

SCREW TBC (6X16) OEM PIAGGIO COMMON A LA RANGE-272836

More information

Quantity required : 2

SCREW FAIRING (M6) OEM PIAGGIO COMMON A TOUTE LA RANGE-575249

7
P2R reference P2R reference 67113
Maker reference Maker reference 575249

SCREW FAIRING (M6) OEM PIAGGIO COMMON A TOUTE LA RANGE-575249

More information

Quantity required : 1

NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485

8
P2R reference P2R reference 66009
Maker reference Maker reference 254485

NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485

More information

Quantity required : 3

SCREW AUTOTARAUDEUSE (3. 85X16) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-270793

9
P2R reference P2R reference 66092
Maker reference Maker reference 270793

SCREW AUTOTARAUDEUSE (3. 85X16) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-270793

More information

Quantity required : 6
