Vehicle Exploded View - APRILIA SR 125 STORM TT BSIV NOABS 2020 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

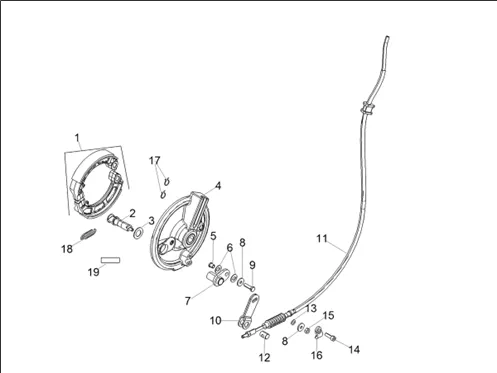

Cadre : 02.31 FREIN AVANT - MÂCHOIRES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1246/SR_125_STORM_TT_BSIV_NOABS_2020_(EMEA)_02.31.png)
1 |
1C004384-PAIRE DE MACHOIRES OF BRAKE More informationQuantity required : 1 |
||||||
|
2 |
1C004444-ESSIEUX LEVER FR. More informationQuantity required : 1 |
||||||
|
3 |
199091-WASHER EPAISSEUR More informationQuantity required : 1 |
||||||
|
4 |
1C004223 - DISQUE PORTE-MACHOIRES CPL. More informationQuantity required : 1 |
||||||
|
5 |
668563-SPACER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/4/4/img/63844.jpg)
6 |
WASHER SPRING OEM PIAGGIO COMMON A LA RANGE-007608 More informationQuantity required : 2 |
||||||
|
7 |
1C004445-PLATE More informationQuantity required : 1 |
||||||
|
8 |
227838 WASHER PLATE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/4/2/img/65642.jpg)
9 |
SCREW TH (6X22) OEM PIAGGIO COMMON A LA RANGE-031091 More informationQuantity required : 1 |
||||||
|
10 |
1C004441-LEVER BRAKE More informationQuantity required : 1 |
||||||
|
11 |
1C004847-TRANSMISSION OF BRAKE FRONT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/9/4/img/65794.jpg)
12 |
PIVOT TRANSMISSION BRAKE REAR OEM PIAGGIO COMMON A TOUTE LA RANGE-179640 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/4/1/img/63841.jpg)
13 |
WASHER ELASTIC (6. 4X12X0. 5) OEM PIAGGIO COMMON A LA RANGE-006976 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/9/7/img/68497.jpg)
14 |
SCREW BTR (6X20) OEM PIAGGIO COMMON A LA RANGE-709674 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/6/1/img/65461.jpg)
15 |
NUT (M6) OEM PIAGGIO COMMON A LA RANGE-020106 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/0/7/2/img/67072.jpg)
16 |
PLATE OF FITTING KIT GANIE OEM PIAGGIO COMMON A LA RANGE-564645 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/6/0/2/img/73602.jpg)
17 |
CLIPS ATTACHE OEM PIAGGIO COMMON A LA RANGE-000061 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/4/1/9/7/img/74197.jpg)
18 |
SPRING BRAKE SHOE SET REAR OEM PIAGGIO 125 VESPA PX-078522 More informationQuantity required : 1 |
||||||
|
19 |
CM0074A3 MANIFOLD NOT METALLIC More informationQuantity required : 1 |
