Vehicle Exploded View - APRILIA SR 125 STORM TT BSIV NOABS 2020 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

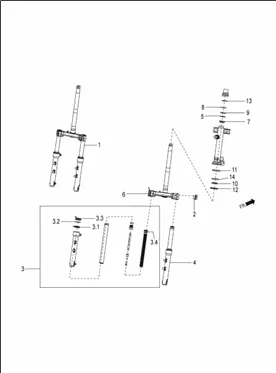

Cadre : 02.16 SUSPENSION AVANT - AMORTISSEUR/S
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1246/SR_125_STORM_TT_BSIV_NOABS_2020_(EMEA)_02.16.png)
1 |
SP1C004622-FORK AV CPL. More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/2/8/7/8/img/152878.jpg)
2 |
SCREW FLANGE TH (10X40) OEM PIAGGIO COMMON A LA RANGE-1C002421 More informationQuantity required : 4 |
|||||||||
|
3 |
1C004623-CHEMISE G. CPL. More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/2/8/8/1/img/152881.jpg)
3a |
OIL SEAL DE FORK OEM PIAGGIO 50 TYPHOON, SR/SXR APRILIA 2018 >-1C002469 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/2/8/8/2/img/152882.jpg)
3b |
CLIPS/CIRCLIPS OEM PIAGGIO COMMON A LA RANGE-1C002470 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/2/8/8/0/img/152880.jpg)
3c |
PROTECTOR POUSSIERE FORK OEM PIAGGIO 50 TYPHOON, SXR 2018 >-1C002471 More informationQuantity required : 2 |
|||||||||
|
3d |
1C002472-CAP More informationQuantity required : 2 |
|||||||||
|
4 |
1C004620-CHEMISE D. CPL. More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/2/1/7/7/9/img/221779.JPG)
5 |
BEARING LOWER DE STEERING OEM PIAGGIO 50 TYPHOON 2018 >/APRILIA 50 SR MOTARD 2018 >-1C006665 More informationQuantity required : 23 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/2/8/8/9/img/152889.jpg)
5 |
HEADSET LOWER BEARING "PIAGGIO GENUINE PART" 50 TYPHOON 2018>/APRILIA 50 SR MOTARD 2018> -564260 More informationQuantity required : 23 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/2/8/7/7/img/152877.jpg)
6 |
TE DE FORK OEM PIAGGIO 50 TYPHOON 2018 >/APRILIA 50 SR MOTARD 2018 >-1C002568 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/2/8/8/7/img/152887.jpg)
7 |
CUVETTE SUPERIEURE DE STEERING OEM PIAGGIO 50 TYPHOON 2018 >/APRILIA 50 SR MOTARD 2018 >-564256 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/8/3/img/63783.jpg)
8 |
WASHER DE TIGHTENING OF FORK OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC ET MAXI SCOOTER 125 CC-0037514 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/2/8/8/5/img/152885.jpg)
9 |
CONE/BUSH UPPER DE STEERING OEM PIAGGIO 50 TYPHOON 2018 >/APRILIA 50 SR MOTARD 2018 >-564258 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/2/8/8/8/img/152888.jpg)
10 |
CUVETTE INFERIEURE DE STEERING OEM PIAGGIO 50 TYPHOON 2018 >/APRILIA 50 SR MOTARD 2018 >-564259 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/2/8/9/0/img/152890.jpg)
11 |
CONE/BUSH INFERIEURE DE STEERING OEM PIAGGIO 50 TYPHOON 2018 >/APRILIA 50 SR MOTARD 2018 >-665602 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/5/2/9/img/127529.jpg)
12 |
BUSH OF PROTECTOR INFERIEURE DE STEERING OEM PIAGGIO 50 TYPHOON 2018 >/APRILIA 50 SR MOTARD 2018 >-5A001442 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/3/9/img/65339.jpg)
13 |
NUT SERRAGE STEERING OEM PIAGGIO ON L'ENSEMBLE DE LA RANGE MAXI SCOOTER-0111094 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/2/8/8/6/img/152886.jpg)
14 |
BEARING UPPER DE STEERING OEM PIAGGIO 50 TYPHOON 2018 >/APRILIA 50 SR MOTARD 2018 >-564257 More informationQuantity required : 28 |
|||||||||
