Vehicle Exploded View - APRILIA SR 125 STORM TT BSIV NOABS 2020 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

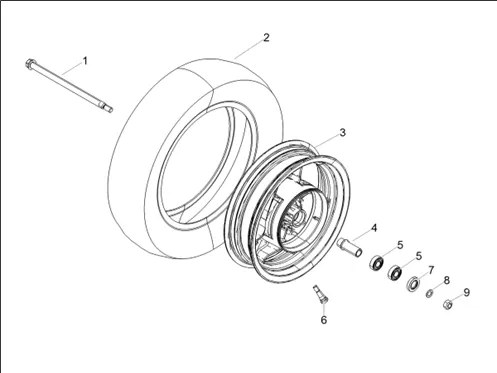

Cadre : 02.19 ROUE AVANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1246/SR_125_STORM_TT_BSIV_NOABS_2020_(EMEA)_02.19.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/2/9/0/4/img/152904.jpg)
1 |
WHEEL SPINDLE FRONT OEM PIAGGIO 50 TYPHOON 2018 >/APRILIA 50 SR MOTARD 2018 >-1C002728 More informationQuantity required : 1 |
||||||
2 |
TYRE FRONT MAXXIS 120/80-12 55J MONTE OEM PIAGGIO 50 TYPHOON 2011 >-666005 More informationQuantity required : 1 |
||||||
|
2 |
666719-TYRE 120/80-12 " VEE RUBBER More informationQuantity required : 1 |
||||||
|
2 |
1C000445 - PNEU 120/80-12 More informationQuantity required : 1 |
||||||
|
3 |
1C004688-FRONT WHEEL More informationQuantity required : 1 |
||||||
|
4 |
1C004371-SPACER COMPLETE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/1/0/2/img/68102.jpg)
5 |
BEARING (15X35X11) DE FRONT WHEEL OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-649910 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/9/4/img/66094.jpg)
6 |
VALVE TUBELESS OEM PIAGGIO COMMON A LA RANGE-270991 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/5/0/7/img/127507.jpg)
7 |
OIL SEAL (20X36X7) OEM PIAGGIO COMMON A LA RANGE-1C001322 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/8/9/img/68489.jpg)
8 |
WASHER PLATE (12. 5X20X2) OEM PIAGGIO COMMON A LA RANGE-709037 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/4/7/img/66047.jpg)
9 |
NUT FLANGE (12X1. 25) OEM PIAGGIO COMMON A LA RANGE-261319 More informationQuantity required : 6 |
