Vehicle Exploded View - APRILIA SL FALCO 1000 SL 1000 Falco 2000-2003
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

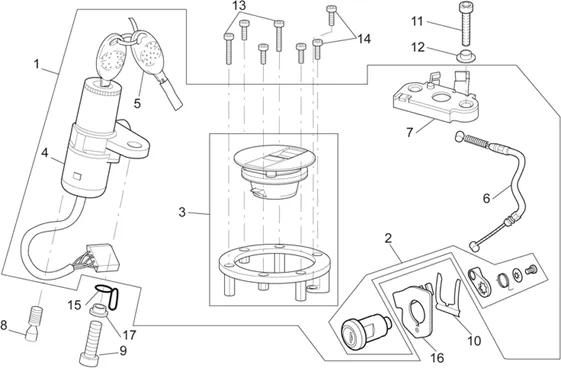

Chassis : 28.44 KIT SERRURE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/568/SL_1000_Falco_2000-2003_28.44.PNG)
1 |
AP8104173 - KIT SERRURE; More informationQuantity required : 1 |
||||||
|
1 |
AP8104213 - KIT SERRURE More informationQuantity required : 1 |
||||||
|
1 |
AP8104259 - KIT SERRURE More informationQuantity required : 1 |
||||||
|
1 |
AP8104260 - KIT SERRURE More informationQuantity required : 1 |
||||||
|
1 |
Kit serrure |
||||||
|
1 |
AP8102722 - KIT SERRURE More informationQuantity required : 1 |
||||||
|
2 |
AP8104154 - SERRURE SELLE More informationQuantity required : 1 |
||||||
|
3 |
Bouchon réservoir essence |
||||||
|
3 |
AP8104528 - BOUCHON RESERVOIR ESSENCE More informationQuantity required : 1 |
||||||
|
3 |
AP8104529 - BOUCHON RESERVOIR ESSENCE More informationQuantity required : 1 |
||||||
|
3 |
Bouchon réservoir essence |
||||||
|
4 |
AP8104708 - BLOCCHETTO AVVIAMENTO-BLOC. More informationQuantity required : 1 |
||||||
|
4 |
AP8104941-BLOCCHETTO AVVIAMENTO-BLOCC. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/4/2/3/img/45423.jpg)
5 |
EBAUCHE DE CLE FRAISEE WITHOUT TRANSPONDEUR OEM APRILIA COMMON A LA RANGE-AP8104613 More informationQuantity required : 1 |
||||||
|
6 |
AP8114411 - CABLE SERRURE; More informationQuantity required : 1 |
||||||
|
7 |
AP8102913-PL. FIX. SEAT PASS. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/6/6/img/71866.jpg)
8 |
SCREW A ARRACHEMENT/AUTO-CASSANTE BTR (8X15) OEM PIAGGIO COMMON A LA RANGE-AP8150349 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/0/img/71950.jpg)
9 |
SCREW FLANGE TH (8X30) OEM PIAGGIO COMMON A LA RANGE-AP8152288 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/6/3/img/71463.jpg)
10 |
AGRAFE A FORK DE MAINTIENT DE LOCK DE UNDERSEAT COMPARTMENT OEM PIAGGIO COMMON A LA RANGE APRILIA ET MOTO-GUZZI-AP8121420 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/5/2/img/71852.jpg)
11 |
SCREW BTR (6X35) OEM PIAGGIO COMMON A LA RANGE-AP8150285 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/9/2/9/img/46929.jpg)
12 |
BUSH EN T (6. 30X10X7. 50) OEM APRILIA COMMON A LA RANGE-AP8121728 More informationQuantity required : 2 |
||||||
|
13 |
SCREW BTR (5X30) OEM PIAGGIO COMMON A LA RANGE-AP8150453 More informationQuantity required : 3 |
||||||
|
14 |
AP8150454-SCREW More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/9/6/img/71396.jpg)
15 |
GUIDE CABLE OEM PIAGGIO COMMON A LA RANGE-AP8120428 More informationQuantity required : 1 |
||||||
|
16 |
AP8134618-PLATE BRACKET CABLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/9/1/7/img/46917.jpg)
17 |
AP8121678 - DOUILLE More informationQuantity required : 1 |
