Vehicle Exploded View - APRILIA SL FALCO 1000 SL 1000 Falco 2000-2003
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

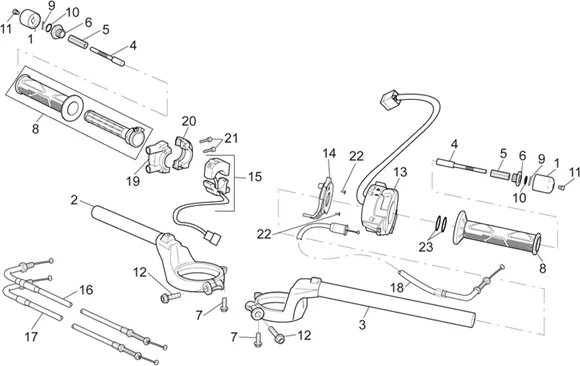

Chassis : 28.21 GUIDON
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/568/SL_1000_Falco_2000-2003_28.21.PNG)
1 |
AP8104573-POIDS ANTI VIBRATION * More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/3/6/4/img/46364.jpg)
2 |
HALF-HANDLEBAR RIGHT OEM PIAGGIO APRILIA 1000 FALCO-AP8118603 More informationQuantity required : 1 |
||||||
|
3 |
Demi-guidon cpl G; |
||||||
|
4 |
AP8121262 - ARBRE MASSE ANTIVIBRATILE More informationQuantity required : 2 |
||||||
|
5 |
Caoutchouc; |
||||||
|
6 |
AP8121261-TERM. POIDS ANTIVIB. More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/2/img/71942.jpg)
7 |
SCREW FLANGE TH (6X20) OEM PIAGGIO COMMON A LA RANGE-AP8152279 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/3/3/9/img/46339.jpg)
8 |
REVETEMENT/GRIP RIGHT + LEFT OEM APRILIA COMMON A LA RANGE-AP8118501 More informationQuantity required : 1 |
||||||
|
9 |
Rouleau |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/8/7/img/71387.jpg)
10 |
O-RING MAITRE CYLINDER REAR (OR112) OEM PIAGGIO COMMON A LA RANGE-AP8120178 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/9/4/2/img/50942.jpg)
11 |
SCREW BTR (6X12) OEM PIAGGIO COMMON A LA RANGE-AP8152040 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/1/img/71951.jpg)
12 |
SCREW FLANGE TH (8X35) OEM PIAGGIO COMMON A LA RANGE-AP8152289 More informationQuantity required : 2 |
||||||
|
13 |
Déviateur feux gche |
||||||
|
13 |
AP8124551 - DEVIATEUR FEUX GCHE; More informationQuantity required : 1 |
||||||
|
13 |
AP8127524 - DEVIOLUCI SX More informationQuantity required : 1 |
||||||
|
14 |
GU01132330 - COMMANDE STARTER More informationQuantity required : 1 |
||||||
|
15 |
AP8127523 - DISPOSITIVO ENGINE STOP-START More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/7/4/5/8/img/47458.jpg)
15 |
RIGHT SWITCH "PIAGGIO GENUINE PART" APRILIA 1000 RSV-2, FALCO -AP8124260 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/1/2/5/img/46125.jpg)
16 |
OPENING GAS THROTTLE CABLE "PIAGGIO GENUINE PART" APRILIA 1000 FALCO -AP8114355- More informationQuantity required : 1 |
||||||
|
17 |
AP8114356 - CABLE FERMETURE GAZ; More informationQuantity required : 1 |
||||||
|
18 |
AP8114369 - CABLE STARTER; More informationQuantity required : 1 |
||||||
|
19 |
AP8118566 - CAVALIER AV. COMMANDE GAZ; More informationQuantity required : 1 |
||||||
|
20 |
AP8118567-CAVALIER AR. CONTROL THROTTLE More informationQuantity required : 1 |
||||||
|
21 |
AP8118492-SCREW CALOTTE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/8/8/9/img/50889.JPG)
22 |
SCREW HEAD FRAISEE PLANE INOX (M3X20) OEM APRILIA-AP8150472 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/7/0/6/3/img/97063.jpg)
23 |
O-RING GRIP LEFT OEM APRILIA COMMON A LA RANGE-AP8120190 More informationQuantity required : 2 |
