Vehicle Exploded View - APRILIA SL FALCO 1000 SL 1000 Falco 2000-2003
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

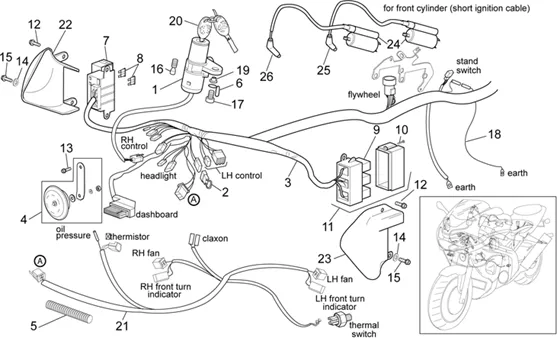

Chassis : 28.41 CIRCUIT ELECTRIQUE AV
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/568/SL_1000_Falco_2000-2003_28.41.PNG)
1 |
AP8104708 - BLOCCHETTO AVVIAMENTO-BLOC. More informationQuantity required : 1 |
||||||
|
1 |
AP8104941-BLOCCHETTO AVVIAMENTO-BLOCC. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/8/9/img/72189.jpg)
2 |
DIODE DE SECURITE OEM PIAGGIO MOTO-GUZZI 750 V7, NEVADA, BREVA/APRILIA 50-125 RS, TUONO, RX, SX, 1000 RSV-2, FALCO, 650 PEGASO, 400-500 ATLANTIC-AP8212588 More informationQuantity required : 1 |
||||||
|
3 |
AP8124523 - CABLAGE PRINCIPAL; More informationQuantity required : 1 |
||||||
|
4 |
AP8127391 - KLAXON; More informationQuantity required : 1 |
||||||
|
5 |
Tuyau protection |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/9/6/img/71396.jpg)
6 |
GUIDE CABLE OEM PIAGGIO COMMON A LA RANGE-AP8120428 More informationQuantity required : 1 |
||||||
|
7 |
AP8124274-BO? TE A FUSIBLES More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/9/9/img/73399.jpg)
8 |
BLADE FUSE STANDARD 15A OEM PIAGGIO COMMON A LA RANGE-CM225715 More informationQuantity required : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/4/0/6/img/139406.jpg)
9 |
RELAIS 12V 30A WITH RESISTANCE OEM PIAGGIO 125-350-500 MP3, X10, 125-250-300 VESPA GTS, PORTER/APRILIA 1000 RSV-2, TUONO V2, FALCO, CAPONORD-1D001636 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/9/img/71879.jpg)
10 |
SCREW CRUCIFORME (2. 9X12) TARAUD FOR PLASTIQUE INOX OEM PIAGGIO COMMON A LA RANGE-AP8150421 More informationQuantity required : 2 |
||||||
|
11 |
AP8124293-BRACKET RELAIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/2/img/71942.jpg)
12 |
SCREW FLANGE TH (6X20) OEM PIAGGIO COMMON A LA RANGE-AP8152279 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/7/img/71947.jpg)
13 |
SCREW FLANGE TH (8X16) OEM PIAGGIO COMMON A LA RANGE-AP8152285 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/0/7/img/71807.jpg)
14 |
WASHER PLATE (6, 4X12, 5) OEM PIAGGIO COMMON A LA RANGE-AP8150014 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/3/img/71943.jpg)
15 |
SCREW FLANGE TH (6X25) OEM PIAGGIO COMMON A LA RANGE-AP8152280 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/6/6/img/71866.jpg)
16 |
SCREW A ARRACHEMENT/AUTO-CASSANTE BTR (8X15) OEM PIAGGIO COMMON A LA RANGE-AP8150349 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/0/img/71950.jpg)
17 |
SCREW FLANGE TH (8X30) OEM PIAGGIO COMMON A LA RANGE-AP8152288 More informationQuantity required : 1 |
||||||
|
18 |
Câbles inter.point mort |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/9/1/7/img/46917.jpg)
19 |
AP8121678 - DOUILLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/4/2/3/img/45423.jpg)
20 |
EBAUCHE DE CLE FRAISEE WITHOUT TRANSPONDEUR OEM APRILIA COMMON A LA RANGE-AP8104613 More informationQuantity required : 1 |
||||||
|
21 |
Câbles ventilateurs; |
||||||
|
22 |
AP8148662 - PROTECTION CABLES D; More informationQuantity required : 1 |
||||||
|
23 |
Protection câbles G; |
||||||
|
24 |
AP0265480 - BOBINE HT More informationQuantity required : 2 |
||||||
|
25 |
AP0265244 - PIPE BOUGIE EXT.; More informationQuantity required : 1 |
||||||
|
26 |
AP0265246 - PIPE BOUGIE INT.; More informationQuantity required : 1 |
