Vehicle Exploded View - APRILIA SL FALCO 1000 SL 1000 Falco 2000-2003
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

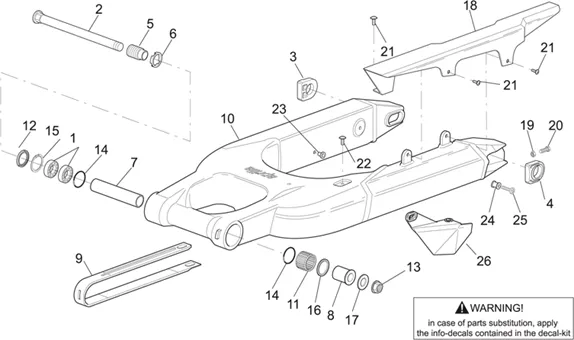

Chassis : 28.09 FOURCHE ARRIERE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/568/SL_1000_Falco_2000-2003_28.09.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/8/3/0/img/45830.jpg)
1 |
BEARING DE ARM DE SUSPENSION OEM PIAGGIO APRILIA 1000 RSV, 750-900 SHIVER, FUTURA, CAPONORD-AP8110079 More informationQuantity required : 2 |
||||||
2 |
AP8125830 - PIVOT FOURCHE AR More informationQuantity required : 1 |
||||||
|
3 |
RIGHT CHAIN GUIDE PLATE "PIAGGIO GENUINE PART" APRILIA 1000 RSV-2, TUONO V2, FALCO -AP8120985- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/7/1/3/img/46713.jpg)
4 |
INSERT DE TENTION DE CHAIN LEFT OEM APRILIA 1000 RSV-2, TUONO V2, FALCO-AP8120986 More informationQuantity required : 1 |
||||||
|
5 |
AP8121200-BUSH DE REGLAGE More informationQuantity required : 1 |
||||||
|
6 |
AP8121201-BUSH PIVOT FORK More informationQuantity required : 1 |
||||||
|
7 |
AP8121202-SPACER INTERNE More informationQuantity required : 1 |
||||||
|
8 |
AP8121203-DOU. INT. ROD FORK More informationQuantity required : 1 |
||||||
|
9 |
Galet guide-chaîne |
||||||
|
10 |
Bras oscillant fini; |
||||||
|
10 |
Bras oscillant fini; |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/8/2/9/img/45829.jpg)
11 |
CAGE A AIGUILLES OEM MOPED SWINGARM OEM APRILIA RSV, CAPONORD, DORSODURO, SHIVER-AP8110078 More informationQuantity required : 1 |
||||||
|
12 |
AP8144006-BUSH D'ETANCHEITE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/7/7/4/7/img/47747.jpg)
13 |
NUT REAR WHEEL OEM APRILIA/MOTO GUZZI COMMON A LA RANGE-AP8125763 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/9/5/8/9/img/49589.jpg)
14 |
O-RING 134 OEM MOPED SWINGARM OEM APRILIA CAPONORD, DORSODURO, RSV, SHIVER-AP8144048 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/7/4/8/img/46748.jpg)
15 |
CLIPS/CIRCLIPS (D = 37) OEM PIAGGIO COMMON A LA RANGE-AP8121204 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/9/5/7/3/img/49573.jpg)
16 |
BUSH D'ETANCHEITE SPINDLE OEM MOPED SWINGARM SIDE LEFT OEM APRILIA CAPONORD 1200 2015 > 2017, DORSODURO 750-900-1200 2010 > 2017, RSV4 1000 2009 > 2018-AP8144005 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/7/7/3/5/img/47735.jpg)
17 |
WASHER SPINDLE REAR WHEEL OEM APRILIA COMMON A LA RANGE-AP8125687 More informationQuantity required : 1 |
||||||
|
18 |
Carter chaîne; |
||||||
|
18 |
Carter chaîne; |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/5/8/2/2/img/145822.jpg)
19 |
NUT FLANGE M8 OEM PIAGGIO COMMON A LA RANGE-2B004511 More informationQuantity required : 2 |
||||||
|
19 |
NUT FLANGE M8 OEM PIAGGIO COMMON A LA RANGE-2B004511 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/2/img/71962.jpg)
20 |
SCREW REGLAGE TENSION CHAIN OEM APRILIA COMMON A LA RANGE-AP8152305 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/7/3/img/71973.jpg)
21 |
SCREW BTR HEAD BOMBEE (5X9) OEM PIAGGIO COMMON A LA RANGE MOTO-AP8152339 More informationQuantity required : 3 |
||||||
|
22 |
SCREW BTR HEAD BOMBEE (5X9) OEM PIAGGIO COMMON A LA RANGE MOTO-AP8152339 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/0/1/img/71401.jpg)
23 |
NUT (M5) WITH INSERT RUBBER OEM PIAGGIO COMMON A LA RANGE DERBI, APRILIA ET MOTO-GUZZI-AP8120531 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/4/5/5/img/50455.jpg)
24 |
SPACER DE GUIDE CHAIN OEM PIAGGIO APRILIA 1000-1100 RSV-4, TUONO V4-AP8148824 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/9/2/img/71892.jpg)
25 |
SCREW BTR HEAD FRAISEE (6X40) OEM PIAGGIO COMMON A LA RANGE-AP8150468 More informationQuantity required : 1 |
||||||
|
26 |
AP8144321-GALET GUIDE-CHA? NE More informationQuantity required : 1 |
