Vehicle Exploded View - APRILIA SL FALCO 1000 SL 1000 Falco 2000-2003
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

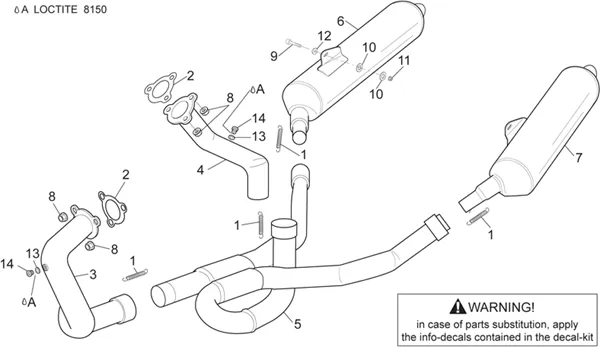

Chassis : 28.33 POT D'ÉCHAPPEMENT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/568/SL_1000_Falco_2000-2003_28.33.PNG)
1 |
AP8121170-SPRING More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/4/3/3/img/46433.jpg)
2 |
GASKET EXHAUST OEM APRILIA 1000 RSV 1998 > 2003-AP8119414 More informationQuantity required : 2 |
||||||
|
3 |
Tuyau échap. av. |
||||||
|
4 |
Tuyau échap. arr. |
||||||
|
5 |
AP8119428 - TUYAU ECHAP. CENT. More informationQuantity required : 1 |
||||||
|
6 |
AP8119431 - SILENCIEUX D More informationQuantity required : 1 |
||||||
|
6 |
Silencieux D |
||||||
|
6 |
Silencieux D |
||||||
|
6 |
AP8119619 - SILENCIEUX D More informationQuantity required : 1 |
||||||
|
6 |
AP8119634 - SILENCIEUX D; More informationQuantity required : 1 |
||||||
|
6 |
Silencieux D; |
||||||
|
6 |
Silencieux D; |
||||||
|
7 |
Silencieux G |
||||||
|
7 |
Silencieux G |
||||||
|
7 |
Silencieux G |
||||||
|
7 |
AP8119620 - SILENCIEUX G More informationQuantity required : 1 |
||||||
|
7 |
AP8119635 - SILENCIEUX G; More informationQuantity required : 1 |
||||||
|
7 |
Silencieux G; |
||||||
|
7 |
Silencieux G; |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/5/8/2/2/img/145822.jpg)
8 |
NUT FLANGE M8 OEM PIAGGIO COMMON A LA RANGE-2B004511 More informationQuantity required : 6 |
||||||
|
8 |
NUT FLANGE M8 OEM PIAGGIO COMMON A LA RANGE-2B004511 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/4/9/img/71849.jpg)
9 |
SCREW BTR (8X50) OEM PIAGGIO COMMON A LA RANGE-AP8150277 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/1/0/img/71810.jpg)
10 |
WASHER PLATE (8. 5X24X2) OEM PIAGGIO COMMON A LA RANGE-AP8150018 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/9/img/71959.jpg)
11 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M8) OEM PIAGGIO COMMON A LA RANGE-AP8152300 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/6/9/8/img/71698.jpg)
12 |
BUSH/WASHER CREUSE MOUNTING SILENCER OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI-AP8134378 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/2/3/img/65723.jpg)
13 |
GASKET CUIVRE (10X16X1) BRAKE CALIPER OEM PIAGGIO COMMON A TOUTE LA RANGE-127927 More informationQuantity required : 2 |
||||||
|
14 |
Vis prise CO |
