Vehicle Exploded View - APRILIA SL FALCO 1000 SL 1000 Falco 2000-2003
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

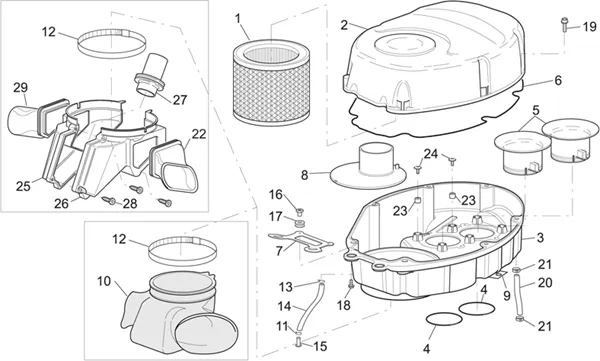

Chassis : 28.29 CORPS FILTRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/568/SL_1000_Falco_2000-2003_28.29.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/9/0/img/71190.jpg)
1 |
AIR FILTER"PIAGGIO GENUINE PART" APRILIA 1000 RSV-2, FALCO, FUTURA -AP8102610 More informationQuantity required : 1 |
||||||
2 |
Part.sup.cais.filtre; |
||||||
|
3 |
AP8149667 - PART.INF.CAIS.FILTRE; More informationQuantity required : 1 |
||||||
|
3 |
AP8149669 - PART.INF.CAIS.FILTRE; More informationQuantity required : 1 |
||||||
|
3 |
AP8149723-PART. INF. CAIS. FILTER More informationQuantity required : 1 |
||||||
|
4 |
AP8144063-O-RING More informationQuantity required : 2 |
||||||
|
5 |
Bouche d'aspiration |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/0/8/img/71408.jpg)
6 |
GASKET COVER DE AIR FILTER (D3) OEM PIAGGIO COMMON A LA RANGE-AP8120615 More informationQuantity required : 1 |
||||||
|
7 |
Supp.av.caisse filtre; |
||||||
|
8 |
Diaphr.de réduction; |
||||||
|
8 |
AP8134739-DIAPHR. DE REDUCTION More informationQuantity required : 1 |
||||||
|
8 |
AP8134399 - DIAPHR.DE REDUCTION; More informationQuantity required : 1 |
||||||
|
9 |
AP8134437-PLATE More informationQuantity required : 1 |
||||||
|
10 |
AP8144085-SLEEVE D'ASPIRATION More informationQuantity required : 1 |
||||||
|
11 |
AP8102377-CLAMP More informationQuantity required : 1 |
||||||
|
12 |
AP8102763 - COLLIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/5/5/img/71155.jpg)
13 |
CLAMP HOSE (10, 1) OEM PIAGGIO COMMON A LA RANGE-AP8101595 More informationQuantity required : 1 |
||||||
|
14 |
AP8144038-FUEL HOSE 6X10 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/1/9/img/71419.JPG)
15 |
CAP DE VIDANGE BOX A AIR OEM PIAGGIO COMMON A LA RANGE APRILIA/MOTO GUZZI-AP8120876 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/9/3/0/img/46930.jpg)
16 |
BUSH EN T OEM APRILIA COMMON A LA RANGE-AP8121731 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/8/4/img/71384.jpg)
17 |
RUBBER/SPACER OEM PIAGGIO COMMON A LA RANGE-AP8120030 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/6/8/3/img/151683.jpg)
18 |
SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8152278 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/9/img/71939.jpg)
19 |
SCREW FLANGE TH (5X15) OEM PIAGGIO COMMON A LA RANGE-AP8152273 More informationQuantity required : 7 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/2/5/img/71425.jpg)
20 |
HOSE/FUEL HOSE (9X14) OEM PIAGGIO APRILIA 450-550 SXV, RXV, 750 BREVA, 1000 RSV-2, TUONO, FALCO, FUTURA, CAPONORD-AP8120987 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/9/9/img/71199.jpg)
21 |
CLAMP HOSE (D 15. 8) OEM PIAGGIO COMMON A LA RANGE-AP8102766 More informationQuantity required : 2 |
||||||
|
22 |
Fourreau aspir. g. |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/9/0/img/71390.jpg)
23 |
SPACER OEM PIAGGIO COMMON A LA RANGE-AP8120253 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/3/img/71933.jpg)
24 |
SCREW FLANGE BTR (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8152246 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/6/5/7/img/45657.jpg)
25 |
RIGHT AIRBOX INTAKE MANIFOLD "PIAGGIO GENUINE PART" APRILIA 1000 RSV-2, TUONO V2, FALCO, FUTURA -AP8106812 More informationQuantity required : 1 |
||||||
|
26 |
LEFT AIRBOX INTAKE MANIFOLD "PIAGGIO GENUINE PART" APRILIA 1000 RSV-2, TUONO V2, FALCO, FUTURA -AP8106813- More informationQuantity required : 1 |
||||||
|
27 |
AP8144383 - QUEUE DE ETRANGLEMENT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/3/0/8/img/72308.jpg)
28 |
SCREW TORX HEAD BOMBEE (3. 5X20) OEM PIAGGIO COMMON A LA RANGE-AP8221242 More informationQuantity required : 3 |
||||||
|
29 |
AP8144410-FOURREAU ASPIR. D. More informationQuantity required : 1 |
