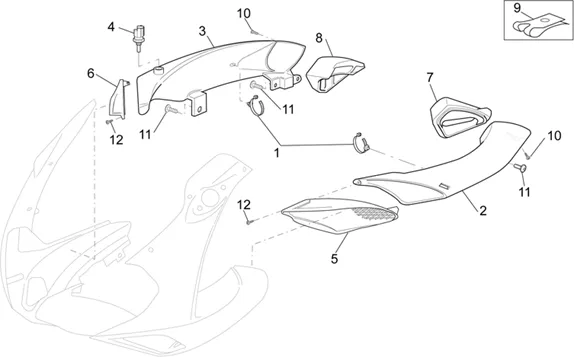

Chassis : 28.12 CARROSSERIE AV. - CONVOYEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/568/SL_1000_Falco_2000-2003_28.12.PNG)
1 |
AP8201539 - COLLIER; More informationQuantity required : 2 |
||||||
|
2 |
AP8139364 - CONVOYEUR G INT.NOIR; More informationQuantity required : 1 |
||||||
|
3 |
AP8139363 - CONVOYEUR D INT.NOIR; More informationQuantity required : 1 |
||||||
|
4 |
AP8124300-DETEC. TEMPER. AIR More informationQuantity required : 1 |
||||||
|
5 |
Grille prise air g.; |
||||||
|
6 |
AP8139634 - GRILLE PRISE AIR DR.; More informationQuantity required : 1 |
||||||
|
7 |
Joint convoyeur G; |
||||||
|
8 |
AP8104075 - JOINT CONVOYEUR D; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/4/img/71174.jpg)
9 |
NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-AP8102375 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/0/img/71880.JPG)
10 |
SCREW (4, 2X25) OEM PIAGGIO COMMON A LA RANGE-AP8150423 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/7/img/71957.jpg)
11 |
SCREW FLANGE BTR (5X16) OEM PIAGGIO COMMON A LA RANGE-AP8152298 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/4/8/img/71848.jpg)
12 |
SCREW CRUCIFORME (4. 2X20) TARAUD OEM PIAGGIO COMMON A LA RANGE-AP8150270 More informationQuantity required : 2 |
