Vehicle Exploded View - APRILIA SL FALCO 1000 SL 1000 Falco 2000-2003
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

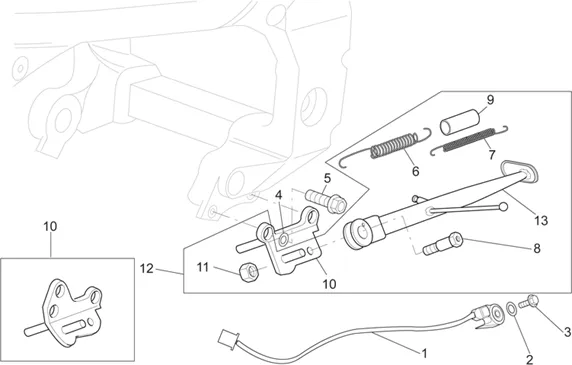

Chassis : 28.04 BÉQUILLE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/568/SL_1000_Falco_2000-2003_28.04.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/6/8/7/img/69687.jpg)
1 |
CONTACTEUR DE STAND OEM PIAGGIO APRILIA ATLANTIC 125-250-300-400-500, SCARABEO 500, 1000 RSV-2, FUTURA, CAPONORD, TUONO V2, FALCO, 50-125 RS/MOTO GUZZI 750 BREVA, NEVADA-00N05700601 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/0/8/img/71808.jpg)
2 |
WASHER PLATE (6. 6X18X1. 6) OEM PIAGGIO COMMON A LA RANGE-AP8150015 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/2/img/71942.jpg)
3 |
SCREW FLANGE TH (6X20) OEM PIAGGIO COMMON A LA RANGE-AP8152279 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/5/6/img/71856.jpg)
4 |
WASHER ELASTIC (D10. 4) OEM PIAGGIO COMMON A LA RANGE-AP8150292 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/6/img/71966.jpg)
5 |
SCREW FLANGE TH (10X30) OEM PIAGGIO COMMON A LA RANGE-AP8152320 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/3/0/2/img/72302.jpg)
6 |
SPRING EXTERNE RAPPEL STAND (GROS SPRING) OEM PIAGGIO COMMON A LA RANGE-AP8221197 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/2/6/img/71426.jpg)
7 |
SPRING RAPPEL STAND (PETIT SPRING) OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA ET MOTO-GUZZI-AP8121014 More informationQuantity required : 1 |
||||||
8 |
AP8121375 - VIS FIX. BEQUILLE; More informationQuantity required : 1 |
||||||
|
8 |
AP8121429-SCREW FIX. STAND More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/8/5/img/71185.jpg)
9 |
PROTECTOR SPRING DE SIDE STAND OEM PIAGGIO COMMON A LA RANGE-AP8102524 More informationQuantity required : 1 |
||||||
|
10 |
AP8134373 - PLAQUE BEQUILLE; More informationQuantity required : 1 |
||||||
|
10 |
AP8134665 - PLAQUE BEQUILLE More informationQuantity required : 1 |
||||||
|
11 |
AP8150480-NUT AUTOFR. BAS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/0/7/img/71907.jpg)
11 |
NUT DE SIDE STAND (10X1, 25) OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA ET MOTO-GUZZI-AP8152001 More informationQuantity required : 1 |
||||||
|
12 |
Béquille cpl.; |
||||||
|
12 |
AP8146010 - BEQUILLE CPL.; More informationQuantity required : 1 |
||||||
|
13 |
AP8146342 - BEQUILLE LATERALE; More informationQuantity required : 1 |
||||||
|
13 |
AP8146364 - BEQUILLE LATERALE; More informationQuantity required : 2 |
