Vehicle Exploded View - APRILIA SL FALCO 1000 SL 1000 Falco 2000-2003 APRILIA

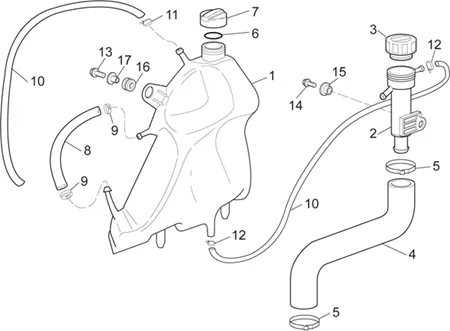

Chassis : 28.26 VASE D'EXPANSION
Vase d'expansion
Search
Vase d'expansion;

1
P2R reference P2R reference
Maker reference Maker reference AP8138781

Vase d'expansion;

AP8120988 - TUBULURE REMPLISSAGE

2
P2R reference P2R reference 46714
Maker reference Maker reference AP8120988

AP8120988-TUBULURE REMPLISSAGE

More information

Quantity required : 1

AP8102615 - BOUCHON

3
P2R reference P2R reference 45192
Maker reference Maker reference AP8102615

AP8102615-CAP *

More information

Quantity required : 1

AP8144032 - TUYAU POMPE-EMBOUT

4
P2R reference P2R reference 49582
Maker reference Maker reference AP8144032

AP8144032-HOSE PUMP-EMBOUT

More information

Quantity required : 1

CLAMP CLIC HOSE (23, 5X8) OEM PIAGGIO COMMON A LA RANGE-AP8101927

5
P2R reference P2R reference 45123
Maker reference Maker reference AP8101927

CLAMP CLIC HOSE (23, 5X8) OEM PIAGGIO COMMON A LA RANGE-AP8101927

More information

Quantity required : 2

OIL TANK GASKET "PIAGGIO GENUINE PART" APRILIA 50 RX, SX, CLASSIC, CAPONORD, TUONO -AP8220191

6
P2R reference P2R reference 97162
Maker reference Maker reference AP8220191

OIL TANK GASKET "PIAGGIO GENUINE PART" APRILIA 50 RX, SX, CLASSIC, CAPONORD, TUONO -AP8220191

More information

Quantity required : 1

AP8104124 - BOUCHON

7
P2R reference P2R reference 45308
Maker reference Maker reference AP8104124

AP8104124 - BOUCHON

More information

Quantity required : 1

1R000162-HOSE

8
P2R reference P2R reference 65920
Maker reference Maker reference 1R000162

1R000162-HOSE

More information

Quantity required : 1

CLAMP CLIC VERT (6. 6X11X1) OEM PIAGGIO COMMON A LA RANGE-AP8120446

9
P2R reference P2R reference 71397
Maker reference Maker reference AP8120446

CLAMP CLIC VERT (6. 6X11X1) OEM PIAGGIO COMMON A LA RANGE-AP8120446

More information

Quantity required : 2

HOSE/FUEL HOSE (5. 5X10) OEM APRILIA-MOTO GUZZI COMMON A LA RANGE-896544

10
P2R reference P2R reference 70868
Maker reference Maker reference 896544

HOSE/FUEL HOSE (5. 5X10) OEM APRILIA-MOTO GUZZI COMMON A LA RANGE-896544

More information

Quantity required : 1

CLAMP HOSE (10, 1) OEM PIAGGIO COMMON A LA RANGE-AP8101595

11
P2R reference P2R reference 71155
Maker reference Maker reference AP8101595

CLAMP HOSE (10, 1) OEM PIAGGIO COMMON A LA RANGE-AP8101595

More information

Quantity required : 1

AP8102738 - COLLIER SERR. TUBE

12
P2R reference P2R reference 71196
Maker reference Maker reference AP8102738

AP8102738-CLAMP SERR. TUBE

More information

Quantity required : 2

SCREW FLANGE TH (6X20) OEM PIAGGIO COMMON A LA RANGE-AP8152279

13
P2R reference P2R reference 71942
Maker reference Maker reference AP8152279

SCREW FLANGE TH (6X20) OEM PIAGGIO COMMON A LA RANGE-AP8152279

More information

Quantity required : 1

SCREW FLANGE TH (5X15) OEM PIAGGIO COMMON A LA RANGE-AP8152273

14
P2R reference P2R reference 71939
Maker reference Maker reference AP8152273

SCREW FLANGE TH (5X15) OEM PIAGGIO COMMON A LA RANGE-AP8152273

More information

Quantity required : 1

NUT (M5) WITH INSERT RUBBER OEM PIAGGIO COMMON A LA RANGE DERBI, APRILIA ET MOTO-GUZZI-AP8120531

15
P2R reference P2R reference 71401
Maker reference Maker reference AP8120531

NUT (M5) WITH INSERT RUBBER OEM PIAGGIO COMMON A LA RANGE DERBI, APRILIA ET MOTO-GUZZI-AP8120531

More information

Quantity required : 1

RUBBER/SPACER OEM PIAGGIO COMMON A LA RANGE-AP8120030

16
P2R reference P2R reference 71384
Maker reference Maker reference AP8120030

RUBBER/SPACER OEM PIAGGIO COMMON A LA RANGE-AP8120030

More information

Quantity required : 1

BUSH EN T (DIAMETER INNER MM 6) OEM PIAGGIO COMMON A LA RANGE-AP8221023

17
P2R reference P2R reference 72294
Maker reference Maker reference AP8221023

BUSH EN T (DIAMETER INNER MM 6) OEM PIAGGIO COMMON A LA RANGE-AP8221023

More information

Quantity required : 1
