Vehicle Exploded View - APRILIA SL FALCO 1000 SL 1000 Falco 2000-2003
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

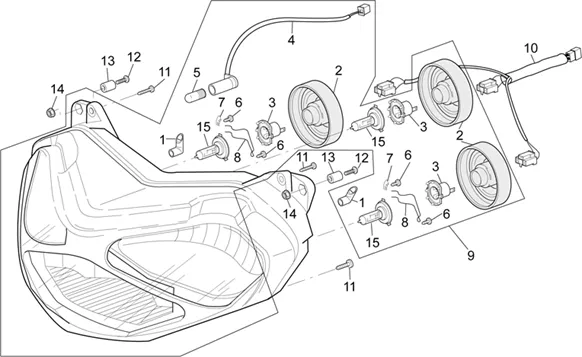

Chassis : 28.39 PHARE AVANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/568/SL_1000_Falco_2000-2003_28.39.PNG)
1 |
Pipette de ventilation; |
||||||
|
2 |
Coiffe phare; |
||||||
|
3 |
Porte-ampoule; |
||||||
|
4 |
AP8124906 - CABLES FEU DE POSITION; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/4/0/8/img/139408.jpg)
5 |
AMPOULE/LAMPE 12V 5W WEDGE T10 BLANCHE OEM PIAGGIO COMMON A LA RANGE-2920225 More informationQuantity required : 1 |
||||||
|
6 |
Vis taraud |
||||||
|
7 |
Support; |
||||||
|
8 |
Ressort |
||||||
|
9 |
Phare avant; |
||||||
|
9 |
Phare avant |
||||||
|
9 |
AP8124744 - PHARE AVANT More informationQuantity required : 1 |
||||||
|
10 |
AP8124763 - CABLAGE FEU AV More informationQuantity required : 1 |
||||||
|
11 |
Vis |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/1/6/img/71916.jpg)
12 |
SCREW BTR HEAD BOMBEE (6X35) OEM PIAGGIO COMMON A LA RANGE-AP8152136 More informationQuantity required : 2 |
||||||
|
13 |
AP8121020-SPACER More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/2/img/71882.jpg)
14 |
NUT AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-AP8150430 More informationQuantity required : 2 |
||||||
|
15 |
AMPOULE H7 55W 12V |
