Vehicle Exploded View - APRILIA SL FALCO 1000 SL 1000 Falco 2000-2003
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

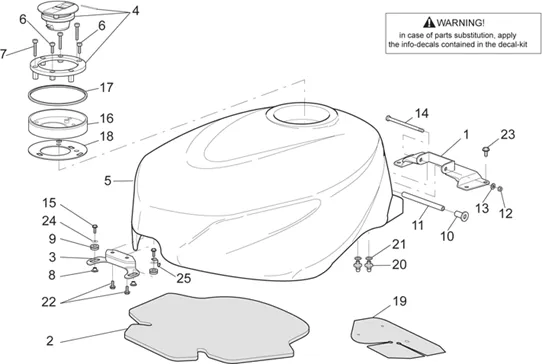

Chassis : 28.15 RÉSERVOIR ESSENCE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/568/SL_1000_Falco_2000-2003_28.15.PNG)
1 |
AP8134500 - SUPPORT RESERVOIR; More informationQuantity required : 1 |
||||||
|
2 |
AP8117127 - PANN.INSONORIS.RES.; More informationQuantity required : 1 |
||||||
|
3 |
AP8121386-CALIPER MOUNTING TANK More informationQuantity required : 1 |
||||||
|
4 |
AP8104528 - BOUCHON RESERVOIR ESSENCE More informationQuantity required : 1 |
||||||
|
4 |
AP8104529 - BOUCHON RESERVOIR ESSENCE More informationQuantity required : 1 |
||||||
|
4 |
Bouchon réservoir essence |
||||||
|
4 |
Bouchon réservoir essence |
||||||
|
5 |
Réservoir ess.red fire; |
||||||
|
5 |
AP8148644 - RESERVOIR ESS.BLACK C.; More informationQuantity required : 1 |
||||||
|
5 |
AP8149654 - RESERV. ESS.P.J. FL.; More informationQuantity required : 1 |
||||||
|
5 |
Réservoir essence peint gris; |
||||||
|
5 |
Réservoir essence peint bleu; |
||||||
|
5 |
Réservoir rouge/noir; |
||||||
|
5 |
AP8158832 - RESERVOIR GRIS/NOIR; More informationQuantity required : 1 |
||||||
|
5 |
Réservoir rouge/noir |
||||||
|
5 |
Réserv.ess.noir/bronze |
||||||
|
5 |
Réservoir essence, vert/noir |
||||||
|
6 |
AP8150454-SCREW More informationQuantity required : 4 |
||||||
|
7 |
SCREW BTR (5X30) OEM PIAGGIO COMMON A LA RANGE-AP8150453 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/9/4/img/72294.jpg)
8 |
BUSH EN T (DIAMETER INNER MM 6) OEM PIAGGIO COMMON A LA RANGE-AP8221023 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/8/4/img/71384.jpg)
9 |
RUBBER/SPACER OEM PIAGGIO COMMON A LA RANGE-AP8120030 More informationQuantity required : 2 |
||||||
|
10 |
AP8144062 - CAOUTCHOUC RESERV. More informationQuantity required : 2 |
||||||
|
11 |
AP8134419-BUSH ATTACHE TANK More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/8/img/71958.jpg)
12 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-AP8152299 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/0/7/img/71807.jpg)
13 |
WASHER PLATE (6, 4X12, 5) OEM PIAGGIO COMMON A LA RANGE-AP8150014 More informationQuantity required : 1 |
||||||
|
14 |
AP8150459-SCREW More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/1/img/71941.jpg)
15 |
SCREW FLANGE TH (6X12) OEM PIAGGIO COMUUN A LA RANGE-AP8152277 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/8/6/img/71186.jpg)
16 |
CUVE DE CAP DE RESEVOIR FUEL OEM PIAGGIO APRILIA 1000 RSV-2, FALCO, FUTURA, TUONO, CAPONORD, 250 RS, 650 PEGASO-AP8102535 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/2/0/img/71420.jpg)
17 |
GASKET OF BUSH OF CAP TANK OEM PIAGGIO APRILIA 750-900 SHIVER, 1000 CAPONORD, RSV-2/MOTO-GUZZI 750 BREVA, DAYTONA, 1100 V11, SPORT-AP8120893 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/2/1/img/71421.jpg)
18 |
FUEL TANK GASKET "PIAGGIO GENUINE PART" APRILIA 750-900 SHIVER, 1000 CAPONORD, RSV-2/MOTO-GUZZI 750 BREVA, DAYTONA, 1100 V11, SPORT -AP8120894- More informationQuantity required : 1 |
||||||
|
18 |
AP8144351-GASKET FUEL TANK More informationQuantity required : 1 |
||||||
|
19 |
AP8117147 - PANN.THERMOFUGE RES.; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/3/7/8/0/2/img/37802.jpg)
20 |
INSERT FUEL TANK OEM APRILIA/MOTO GUZZI COMMON A LA RANGE-2B001203 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/2/4/img/71424.jpg)
21 |
O RING OF CANALISATION FUEL OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA ET MOTO-GUZZI-AP8120965 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/3/img/71943.jpg)
22 |
SCREW FLANGE TH (6X25) OEM PIAGGIO COMMON A LA RANGE-AP8152280 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/2/img/71942.jpg)
23 |
SCREW FLANGE TH (6X20) OEM PIAGGIO COMMON A LA RANGE-AP8152279 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/0/8/img/71808.jpg)
24 |
WASHER PLATE (6. 6X18X1. 6) OEM PIAGGIO COMMON A LA RANGE-AP8150015 More informationQuantity required : 2 |
||||||
|
25 |
AP8121889-GUIDE-CABLE More informationQuantity required : 1 |
