Vehicle Exploded View - APRILIA SL FALCO 1000 SL 1000 Falco 2000-2003
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

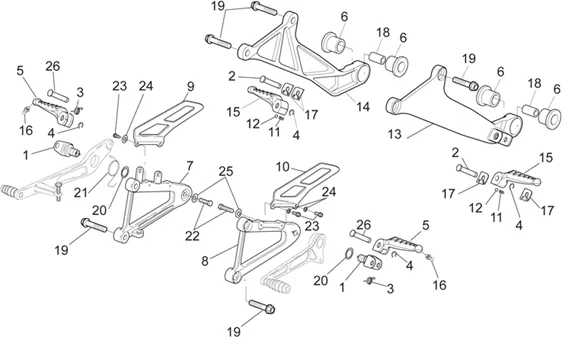

Chassis : 28.03 REPOSE-PIEDS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/568/SL_1000_Falco_2000-2003_28.03.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/9/5/5/img/46955.jpg)
1 |
SUPPORT FOR RIDER FOOTREST "PIAGGIO GENUINE PART" APRILIA 250 RS 1995>2003, 1000 FALCO 2000>2003 -AP8121917 More informationQuantity required : 2 |
||||||
2 |
Pivot repose-pieds |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/5/4/img/71454.jpg)
3 |
SPRING RETOUR FOOTREST PILOTE OEM APRILIA 660-750-900-1000-1100 SHIVER, RSV, TUONO-AP8121224 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/0/4/img/71404.jpg)
4 |
CIRCLIPS OF REST FOOT OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA ET MOTO-GUZZI-AP8120573 More informationQuantity required : 4 |
||||||
|
5 |
AP8146623 - R-PIED PILOTE-PAIRE; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/4/5/img/71745.jpg)
6 |
RUBBER DE SILENCER EXHAUST OEM APRILIA/MOTO GUZZI COMMON A LA RANGE-AP8144071 More informationQuantity required : 4 |
||||||
|
7 |
AP8134593 - SUP.PL.PILOTE DTE; More informationQuantity required : 1 |
||||||
|
8 |
AP8134594 - SUP.PL.PILOTE GCHE; More informationQuantity required : 1 |
||||||
|
9 |
AP8146231 - PROTEC.R-PIED PIL. D; More informationQuantity required : 1 |
||||||
|
10 |
Protec.r-pied pil. G; |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/3/7/img/71437.jpg)
11 |
SPRING DE MAINTIEN FOOTREST OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA ET MOTO-GUZZI-AP8121133 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/6/3/img/71163.jpg)
12 |
BILLE BLOCAGE FOOTREST OEM PIAGGIO APRILIA DORSODURO 750-900-1200, RS 50-125, RSV-4 1000, TUONO 1000/MOTO GUZZI 1200 SPORT, BELLAGIO, BREVA, GRISO, NORGE-AP8101861 More informationQuantity required : 2 |
||||||
|
13 |
Support r-p. G pass.; |
||||||
|
13 |
AP8146408 - PEDANA SX PASSEGGERO COMPL. More informationQuantity required : 1 |
||||||
|
13 |
Support r-p. G pass. |
||||||
|
14 |
Support r-p. D pass.; |
||||||
|
14 |
AP8146407 - PEDANA DX PASSEGGERO COMPL. More informationQuantity required : 1 |
||||||
|
14 |
AP8146561 - PEDANA DX PASS.COMP.V.GRIGIO S More informationQuantity required : 1 |
||||||
|
15 |
AP8146466 - R-PIED PASS.-PAIRE More informationQuantity required : 1 |
||||||
|
16 |
AP8134644-PIVOT FRICTION R-FOOT More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/0/3/img/71703.jpg)
17 |
PLATE FDC PASSENGER FOOTREST OEM PIAGGIO COMMON A LA RANGE-AP8134451 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/8/4/img/71484.jpg)
18 |
SPACER (8X12X26) OEM PIAGGIO COMMON A LA RANGE-AP8121773 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/0/img/71950.jpg)
19 |
SCREW FLANGE TH (8X30) OEM PIAGGIO COMMON A LA RANGE-AP8152288 More informationQuantity required : 8 |
||||||
|
20 |
AP8150446 - RESSORT A GODET More informationQuantity required : 2 |
||||||
|
21 |
AP8121410 - RESSORT MAN.FERIN AR. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/8/7/9/img/50879.jpg)
22 |
SCREW TH (8X30) OEM PIAGGIO COMMON A LA RANGE-AP8150447 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/9/img/71939.jpg)
23 |
SCREW FLANGE TH (5X15) OEM PIAGGIO COMMON A LA RANGE-AP8152273 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/7/0/8/4/img/97084.jpg)
24 |
WASHER ELASTIC COURBE (5. 3X10X0. 5) OEM PIAGGIO COMMON A LA RANGE-AP8150272 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/0/img/71870.jpg)
25 |
WASHER ELASTIC COURBE (8. 5X15X0. 8) OEM PIAGGIO COMMON A LA RANGE-AP8150376 More informationQuantity required : 2 |
||||||
|
26 |
AP8121918 - PIVOT REPOSE-PIEDS; More informationQuantity required : 2 |
