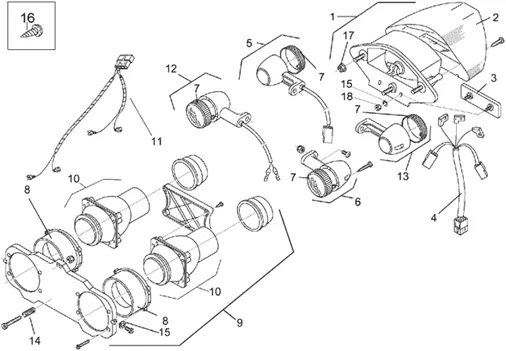

Vehicle Exploded View - APRILIA RALLY 50 H2O 1996-1999 APRILIA

Chassis : 28.28 FEUX
Feux
Search
AP8124352 - FEU ARRIERE AVEC CATADIOPTRE

1
P2R reference P2R reference 47471
Maker reference Maker reference AP8124352

AP8124352 - FEU ARRIERE AVEC CATADIOPTRE

More information

Quantity required : 1

AP8112883 - GLACE PHARE AR

2
P2R reference P2R reference 45893
Maker reference Maker reference AP8112883

AP8112883-GLACE HEADLAMP AR

More information

Quantity required : 1

AP8112916-CATADIOPTRE LAMP REAR

3
P2R reference P2R reference 45896
Maker reference Maker reference AP8112916

AP8112916-CATADIOPTRE LAMP REAR

More information

Quantity required : 1

AP8212691 - CABLAGE FEU AR

4
P2R reference P2R reference 56294
Maker reference Maker reference AP8212691

AP8212691 - CABLAGE FEU AR

More information

Quantity required : 1

AP8212700 - CLIGNOT.AV.GA./ARR.DR.

5
P2R reference P2R reference 56299
Maker reference Maker reference AP8212700

AP8212700 - CLIGNOT.AV.GA./ARR.DR.

More information

Quantity required : 1

Clignot.av.ga./arr.dr.;

6
P2R reference P2R reference
Maker reference Maker reference AP8124139

Clignot.av.ga./arr.dr.;

CABOCHON INDICATOR OEM APRILIA 50-125-250 RS 2005 <-AP8212680

7
P2R reference P2R reference 56291
Maker reference Maker reference AP8212680

CABOCHON INDICATOR OEM APRILIA 50-125-250 RS 2005 <-AP8212680

More information

Quantity required : 4

Bague chromée;

8
P2R reference P2R reference
Maker reference Maker reference AP8212877

Bague chromée;

AP8212801 - PHARE AVANT;

9
P2R reference P2R reference 56324
Maker reference Maker reference AP8212801

AP8212801 - PHARE AVANT;

More information

Quantity required : 1

Phare sans access.;

10
P2R reference P2R reference
Maker reference Maker reference AP8212878

Phare sans access.;

Câblage feu avant + coiffe;

11
P2R reference P2R reference
Maker reference Maker reference AP8212808

Câblage feu avant + coiffe;

AP8124140 - CLIGNOT.AV.DR./ARR.GA.;

12
P2R reference P2R reference 47435
Maker reference Maker reference AP8124140

AP8124140 - CLIGNOT.AV.DR./ARR.GA.;

More information

Quantity required : 1

AP8212699 - CLIGNOT.AV.DR./ARR.GA.

13
P2R reference P2R reference 56298
Maker reference Maker reference AP8212699

AP8212699-CLIGNOT. AV. DR./ARR. GA.

More information

Quantity required : 1

AP8121023 - RESSORT REGLAGE PHARE

14
P2R reference P2R reference 71428
Maker reference Maker reference AP8121023

AP8121023 - RESSORT REGLAGE PHARE

More information

Quantity required : 1

WASHER PLATE (4. 3X12X1) OEM PIAGGIO COMMON A LA RANGE-AP8150011

15
P2R reference P2R reference 71804
Maker reference Maker reference AP8150011

WASHER PLATE (4. 3X12X1) OEM PIAGGIO COMMON A LA RANGE-AP8150011

More information

Quantity required : 2

SCREW CRUCIFORME (3. 9X7. 5) TARAUD FOR PLASTIQUE INOX OEM PIAGGIO COMMON A LA RANGE-AP8150420

16
P2R reference P2R reference 71878
Maker reference Maker reference AP8150420

SCREW CRUCIFORME (3. 9X7. 5) TARAUD FOR PLASTIQUE INOX OEM PIAGGIO COMMON A LA RANGE-AP8150420

More information

Quantity required : 2

NUT FLANGE AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-AP8152299

17
P2R reference P2R reference 71958
Maker reference Maker reference AP8152299

NUT FLANGE AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-AP8152299

More information

Quantity required : 2

NUT FLANGE AUTOBLOQUANT/NYLSTOP (M5) OEM PIAGGIO COMMON A LA RANGE-AP81523066

18
P2R reference P2R reference 71963
Maker reference Maker reference AP8152306

NUT FLANGE AUTOBLOQUANT/NYLSTOP (M5) OEM PIAGGIO COMMON A LA RANGE-AP81523066

More information

Quantity required : 2
