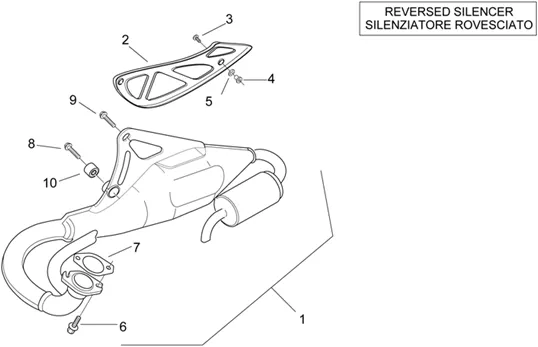

Chassis : 28.22 GROUPE ECHAPP. "RAC"
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/263/Rally_50_H2O_1996-1999_28.22.PNG)
1 |
AP8219482 - POT D'ECHAPPEMENT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/6/5/img/72265.jpg)
2 |
PROTECTOR/SHEET METAL DE SILENCER EXHAUST OEM PIAGGIO 50 NRG POWER 2007 >/APRILIA 50 SR H2O 2000 >, SONIC 1998 > 2008, RALLY 1996 > 1999, AREA 1998 > 2000, SCARABEO DITECH 2001 > 2001-AP8219452 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/3/img/71933.jpg)
3 |
SCREW FLANGE BTR (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8152246 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/3/2/img/71432.jpg)
4 |
BUSH EN T (6. 1X10X5. 5) OEM PIAGGIO COMMON A LA RANGE-AP8121075 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/3/1/3/img/72313.jpg)
5 |
WASHER ISOLANTE (6X20X1. 5) EXHAUST OEM PIAGGIO COMMON A LA RANGE-AP8221297-ISOLANTE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/9/8/img/71898.jpg)
6 |
SCREW BTR (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8150521 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/7/2/7/img/56727.jpg)
7 |
AP8219212-GASKET SILENCER D'ECHAPPEMENT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/1/img/71951.jpg)
8 |
SCREW FLANGE TH (8X35) OEM PIAGGIO COMMON A LA RANGE-AP8152289 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/0/img/71950.jpg)
9 |
SCREW FLANGE TH (8X30) OEM PIAGGIO COMMON A LA RANGE-AP8152288 More informationQuantity required : 1 |
||||||
|
10 |
AP8220357-RUBBER MOUNT SILENCER VERT More informationQuantity required : 1 |
