Vehicle Exploded View - APRILIA RALLY 50 H2O 1996-1999
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

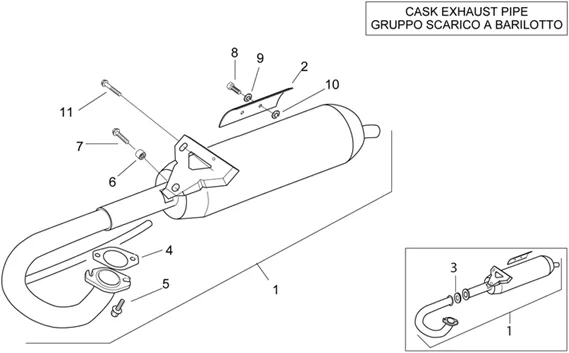

Chassis : 28.23 GROUPE ECHAPPEMENT "BAR"
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/263/Rally_50_H2O_1996-1999_28.23.PNG)
1 |
POT ECHAPPEMENT CAT -CH- |
||||||
|
1 |
POT ECHAPPEMENT CAT -NL- |
||||||
|
1 |
POT ECHAPPEMENT CAT -D- |
||||||
|
1 |
Pot catalytique - A |
||||||
|
2 |
PROTECTION POT ECHAPP |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/7/3/5/img/56735.jpg)
3 |
AP8219321 - JOINT BRIDE POT D'ECHAPPEMENT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/7/2/7/img/56727.jpg)
4 |
AP8219212-GASKET SILENCER D'ECHAPPEMENT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/9/8/img/71898.jpg)
5 |
SCREW BTR (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8150521 More informationQuantity required : 2 |
||||||
|
6 |
AP8220357-RUBBER MOUNT SILENCER VERT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/1/img/71951.jpg)
7 |
SCREW FLANGE TH (8X35) OEM PIAGGIO COMMON A LA RANGE-AP8152289 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/6/4/img/71864.jpg)
8 |
SCREW BTR HEAD BOMBEE (6X12) OEM PIAGGIO COMMON A LA RANGE-AP8150340 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/3/3/img/71833.JPG)
9 |
WASHER PLATE (6. 4X12. 5) OEM PIAGGIO COMMON A LA RANGE-AP8150178 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/3/4/img/71834.jpg)
10 |
WASHER PLATE (6, 6X18X1, 6) OEM PIAGGIO COMMON A LA RANGE-AP8150179 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/0/img/71950.jpg)
11 |
SCREW FLANGE TH (8X30) OEM PIAGGIO COMMON A LA RANGE-AP8152288 More informationQuantity required : 1 |
