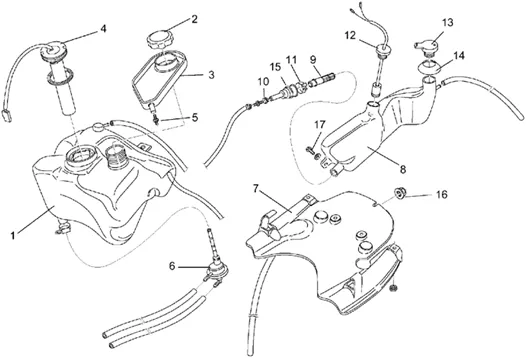

Chassis : 28.16 RESERVOIR HUILE ET CARBURANT
Reservoir huile et carburant
Search
Réservoir essence

1
P2R reference P2R reference
Maker reference Maker reference AP8258808

Réservoir essence

AP8201757 - BOUCHON ESSENCE

2
P2R reference P2R reference 55386
Maker reference Maker reference AP8201757

AP8201757 - BOUCHON ESSENCE

More information

Quantity required : 1

AP8220344 - CUVE COLLECTE ESSENCE

3
P2R reference P2R reference 56862
Maker reference Maker reference AP8220344

AP8220344 - CUVE COLLECTE ESSENCE

More information

Quantity required : 1

AP8212958 - SONDE NIVEAU ESSENCE

4
P2R reference P2R reference 56355
Maker reference Maker reference AP8212958

AP8212958-SONDE NIVEAU FUEL

More information

Quantity required : 1

FITTING FUEL A DEUX VOIES OEM PIAGGIO COMMON A LA RANGE-AP8101944

5
P2R reference P2R reference 71166
Maker reference Maker reference AP8101944

FITTING FUEL A DEUX VOIES OEM PIAGGIO COMMON A LA RANGE-AP8101944

More information

Quantity required : 1

AP8201824 - ROBINET ESSENCE A DEPRESS.

6
P2R reference P2R reference 55395
Maker reference Maker reference AP8201824

AP8201824-ROBINET FUEL A DEPRESS.

More information

Quantity required : 1

Protection robinet essence;

7
P2R reference P2R reference
Maker reference Maker reference AP8231993

Protection robinet essence;

AP8230913 - RESERVOIR HUILE;

8
P2R reference P2R reference 57972
Maker reference Maker reference AP8230913

AP8230913-TANK OIL

More information

Quantity required : 1

OIL TANK FILTER "PIAGGIO GENUINE PART" COMMON TO THE RANGE APRILIA 50-125 CC -AP8102224

9
P2R reference P2R reference 71170
Maker reference Maker reference AP8102224

OIL TANK FILTER "PIAGGIO GENUINE PART" COMMON TO THE RANGE APRILIA 50-125 CC -AP8102224

More information

Quantity required : 1

AP8101770 - COLLIER CLIC

10
P2R reference P2R reference 71161
Maker reference Maker reference AP8101770

AP8101770-CLAMP CLIC

More information

Quantity required : 2

CLAMP CLIC (23, 5X8) OEM PIAGGIO COMMON A LA RANGE-AP8101743

11
P2R reference P2R reference 45107
Maker reference Maker reference AP8101743

CLAMP CLIC (23, 5X8) OEM PIAGGIO COMMON A LA RANGE-AP8101743

More information

Quantity required : 1

AP8212481 - INDICATEUR RESERVE HUILE

12
P2R reference P2R reference 56269
Maker reference Maker reference AP8212481

AP8212481-INDICATEUR RESERVE OIL

More information

Quantity required : 1

CAP TANK OIL OEM PIAGGIO APRILIA COMMON A LA RANGE SCOOTER 50 CC-AP8220421

13
P2R reference P2R reference 56882
Maker reference Maker reference AP8220421

CAP TANK OIL OEM PIAGGIO APRILIA COMMON A LA RANGE SCOOTER 50 CC-AP8220421

More information

Quantity required : 1

GASKET CAP DE TANK D'HUILE OEM PIAGGIO APRILIA SR 50 1993 > 2004-AP8220195

14
P2R reference P2R reference 56840
Maker reference Maker reference AP8220195

GASKET CAP DE TANK D'HUILE OEM PIAGGIO APRILIA SR 50 1993 > 2004-AP8220195

More information

Quantity required : 1

RUBBER/FITTING CANALISATION OIL OEM PIAGGIO COMMON A LA RANGE APRILIA 50-125-AP8102223

15
P2R reference P2R reference 45142
Maker reference Maker reference AP8102223

RUBBER/FITTING CANALISATION OIL OEM PIAGGIO COMMON A LA RANGE APRILIA 50-125-AP8102223

More information

Quantity required : 1

NUT FLANGE AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-AP8152299

16
P2R reference P2R reference 71958
Maker reference Maker reference AP8152299

NUT FLANGE AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-AP8152299

More information

Quantity required : 1

SCREW FLANGE TH (5X15) OEM PIAGGIO COMMON A LA RANGE-AP8152273

17
P2R reference P2R reference 71939
Maker reference Maker reference AP8152273

SCREW FLANGE TH (5X15) OEM PIAGGIO COMMON A LA RANGE-AP8152273

More information

Quantity required : 1
