Vehicle Exploded View - APRILIA RALLY 50 H2O 1996-1999
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

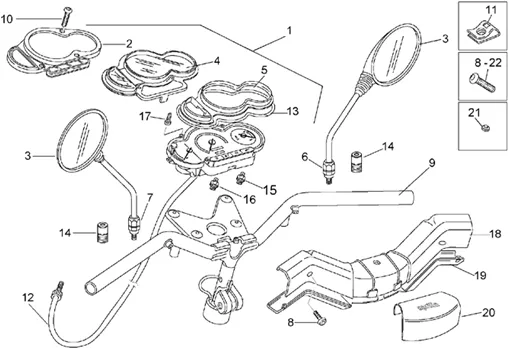

Chassis : 28.13 GUIDON-TABLEAU DE BORD
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/263/Rally_50_H2O_1996-1999_28.13.PNG)
1 |
Tableau de bord; |
||||||
|
2 |
Cache tém.sans verre; |
||||||
|
3 |
AP8201984-MIROIR MIRROR More informationQuantity required : 2 |
||||||
|
4 |
AP8212873 - PROT. VITRE TABL.BORD; More informationQuantity required : 1 |
||||||
|
5 |
Tablier éclairage orange; |
||||||
|
6 |
AP8201986-NUT WITH PINCE CTTE DTE More informationQuantity required : 1 |
||||||
|
7 |
AP8201987-NUT WITH PINCE CTTE GCHE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/3/img/71933.jpg)
8 |
SCREW FLANGE BTR (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8152246 More informationQuantity required : 2 |
||||||
|
9 |
AP8218233 - GUIDON PEINT; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/3/0/8/img/72308.jpg)
10 |
SCREW TORX HEAD BOMBEE (3. 5X20) OEM PIAGGIO COMMON A LA RANGE-AP8221242 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/4/img/71174.jpg)
11 |
NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-AP8102375 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/5/5/7/img/56557.jpg)
12 |
TRANSMISSION SPEEDOMETER CABLE "PIAGGIO GENUINE PART APRILIA 50 RALLY H2O -AP8214165 More informationQuantity required : 1 |
||||||
|
13 |
AP8220555 - JOINT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/8/9/1/img/56891.jpg)
14 |
AP8220462-SOUFFLET EN RUBBER More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/2/5/9/img/56259.JPG)
15 |
DOOR AMPOULE 12V 1. 2 W OEM APRILIA-AP8212407 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/2/6/0/img/56260.JPG)
16 |
DOOR-AMPOULE COMPLETE-AP8212408 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/9/img/71879.jpg)
17 |
SCREW CRUCIFORME (2. 9X12) TARAUD FOR PLASTIQUE INOX OEM PIAGGIO COMMON A LA RANGE-AP8150421 More informationQuantity required : 5 |
||||||
|
18 |
AP8238480 - CACHE-GUIDON SUPERIEUR; More informationQuantity required : 1 |
||||||
|
19 |
Cache-guidon inférieur; |
||||||
|
20 |
Couvercle guidon peint gris; |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/8/8/img/71488.jpg)
21 |
BUSH EN T INNER 6 MM OEM PIAGGIO COMMON A LA RANGE-AP8121811 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/7/img/71957.jpg)
22 |
SCREW FLANGE BTR (5X16) OEM PIAGGIO COMMON A LA RANGE-AP8152298 More informationQuantity required : 2 |
