Vehicle Exploded View - APRILIA RALLY 50 H2O 1996-1999 APRILIA

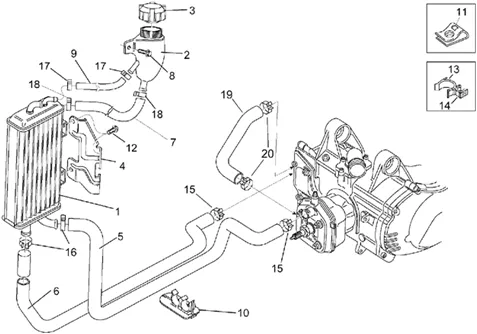

Chassis : 28.17 INSTALLATION REFROIDISSEMENT
Installation refroidissement
Search
AP8202210 - RADIATEUR GRIS

1
P2R reference P2R reference 55447
Maker reference Maker reference AP8202210

AP8202210 - RADIATEUR GRIS

More information

Quantity required : 1

AP8238464 - VASE D'EXPANSION;

2
P2R reference P2R reference 58230
Maker reference Maker reference AP8238464

AP8238464 - VASE D'EXPANSION;

More information

Quantity required : 1

CAP VASE COOLING OEM APRILIA 50 SR H2O 1994 > 2012-AP8101912

3
P2R reference P2R reference 45116
Maker reference Maker reference AP8101912

CAP VASE COOLING OEM APRILIA 50 SR H2O 1994 > 2012-AP8101912

More information

Quantity required : 1

Support radiateur;

4
P2R reference P2R reference
Maker reference Maker reference AP8234102

Support radiateur;

Tube de culasse radiateur;

5
P2R reference P2R reference
Maker reference Maker reference AP8220434

Tube de culasse radiateur;

Tube pompe radiateur;

6
P2R reference P2R reference
Maker reference Maker reference AP8220433

Tube pompe radiateur;

Tuyau à texture en caoutchouc;

7
P2R reference P2R reference
Maker reference Maker reference AP8220449

Tuyau à texture en caoutchouc;

SCREW FLANGE TH (6X25) OEM PIAGGIO COMMON A LA RANGE-AP8152280

8
P2R reference P2R reference 71943
Maker reference Maker reference AP8152280

SCREW FLANGE TH (6X25) OEM PIAGGIO COMMON A LA RANGE-AP8152280

More information

Quantity required : 1

AP8220450 - TUYAU A TEXTURE EN CAOUTCHOUC;

9
P2R reference P2R reference 56886
Maker reference Maker reference AP8220450

AP8220450-HOSE A TEXTURE EN RUBBER

More information

Quantity required : 1

AP8234218 - SUPPORTO TUBI ACQUA

10
P2R reference P2R reference 58100
Maker reference Maker reference AP8234218

AP8234218-BRACKET TUBI ACQUA

More information

Quantity required : 1

NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485

11
P2R reference P2R reference 66009
Maker reference Maker reference 254485

NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485

More information

Quantity required : 2

SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8152278

12
P2R reference P2R reference 151683
Maker reference Maker reference AP8152278

SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8152278

More information

Quantity required : 2

AP8201807 - GUIDE-CABLE

13
P2R reference P2R reference 55392
Maker reference Maker reference AP8201807

AP8201807-GUIDE-CABLE

More information

Quantity required : 1

AP8201808 - GUIDE-CABLE

14
P2R reference P2R reference 72146
Maker reference Maker reference AP8201808

AP8201808-GUIDE-CABLE

More information

Quantity required : 1

CLAMP 16-24X8 OEM PIAGGIO COMMON A LA RANGE-AP8101573

15
P2R reference P2R reference 71152
Maker reference Maker reference AP8101573

CLAMP 16-24X8 OEM PIAGGIO COMMON A LA RANGE-AP8101573

More information

Quantity required : 2

AP8201169-CLAMP CLIC

16
P2R reference P2R reference 72128
Maker reference Maker reference AP8201169

AP8201169-CLAMP CLIC

More information

Quantity required : 2

AP8102239-CLAMP CLIC

17
P2R reference P2R reference 71171
Maker reference Maker reference AP8102239

AP8102239-CLAMP CLIC

More information

Quantity required : 2

CLAMP CLIC (17, 5X8) OEM PIAGGIO COMMON A LA RANGE-AP8102349

18
P2R reference P2R reference 71172
Maker reference Maker reference AP8102349

CLAMP CLIC (17, 5X8) OEM PIAGGIO COMMON A LA RANGE-AP8102349

More information

Quantity required : 2

AP8206573 - TUYAU POMPE-CYLINDRE

19
P2R reference P2R reference 55895
Maker reference Maker reference AP8206573

AP8206573 - TUYAU POMPE-CYLINDRE

More information

Quantity required : 1

AP8206583 - COLLIER

20
P2R reference P2R reference 55903
Maker reference Maker reference AP8206583

AP8206583 - COLLIER

More information

Quantity required : 2
