Vehicle Exploded View - APRILIA RALLY 50 H2O 1996-1999 APRILIA

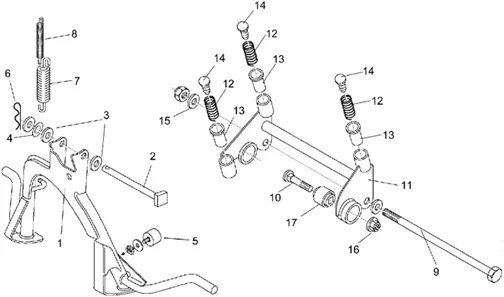

Chassis : 28.02 BEQUILLE - BIELLE
Bequille - bielle
Search
AP8232982 - BEQUILLE;

1
P2R reference P2R reference 58044
Maker reference Maker reference AP8232982

AP8232982 - BEQUILLE;

More information

Quantity required : 1

AP8221296 - PIVOT BEQUILLE AVEC RONDELLES

2
P2R reference P2R reference 57049
Maker reference Maker reference AP8221296

AP8221296-PIVOT STAND WITH RONDELLES

More information

Quantity required : 1

WASHER RUBBER (10. 5X20X1. 5) OEM PIAGGIO COMMON A LA RANGE-AP8220366

3
P2R reference P2R reference 56865
Maker reference Maker reference AP8220366

WASHER RUBBER (10. 5X20X1. 5) OEM PIAGGIO COMMON A LA RANGE-AP8220366

More information

Quantity required : 2

WASHER SPRING (D10. 5) OEM PIAGGIO COMMON A LA RANGE-AP81216976

4
P2R reference P2R reference 71482
Maker reference Maker reference AP8121697

WASHER SPRING (D10. 5) OEM PIAGGIO COMMON A LA RANGE-AP81216976

More information

Quantity required : 1

BUFFER RUBBER (6X10) OEM APRILIA COMMON A LA RANGE-AP8144030

5
P2R reference P2R reference 71739
Maker reference Maker reference AP8144030

BUFFER RUBBER (6X10) OEM APRILIA COMMON A LA RANGE-AP8144030

More information

Quantity required : 1

GOUPILLE (20X1. 2) OEM PIAGGIO COMMON A LA RANGE-AP8201431

6
P2R reference P2R reference 72133
Maker reference Maker reference AP8201431

GOUPILLE (20X1. 2) OEM PIAGGIO COMMON A LA RANGE-AP8201431

More information

Quantity required : 1

SPRING DE CENTRE STAND OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125 APRILIA/MOTO-GUZZI NORGE, BREVA, STELVIO-AP8221204

7
P2R reference P2R reference 72303
Maker reference Maker reference AP8221204

SPRING DE CENTRE STAND OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125 APRILIA/MOTO-GUZZI NORGE, BREVA, STELVIO-AP8221204

More information

Quantity required : 1

SPRING INTERNE RAPPEL STAND (PETIT SPRING) OEM PIAGGIO COMMON A LA RANGE-AP8221211

8
P2R reference P2R reference 72304
Maker reference Maker reference AP8221211

SPRING INTERNE RAPPEL STAND (PETIT SPRING) OEM PIAGGIO COMMON A LA RANGE-AP8221211

More information

Quantity required : 1

AP8221160 - PIVOT SUPPORT MOTEUR

9
P2R reference P2R reference 72300
Maker reference Maker reference AP8221160

AP8221160-PIVOT BRACKET ENGINE

More information

Quantity required : 1

AP8221184 - PIVOT FIXATION BIELLETTE

10
P2R reference P2R reference 57015
Maker reference Maker reference AP8221184

AP8221184-PIVOT MOUNTING BIELLETTE

More information

Quantity required : 2

Biellette fixation moteur;

11
P2R reference P2R reference
Maker reference Maker reference AP8232818

Biellette fixation moteur;

AP8221215 - RESSORT BIELLE

12
P2R reference P2R reference 57022
Maker reference Maker reference AP8221215

AP8221215 - RESSORT BIELLE

More information

Quantity required : 3

BUSH OEM PIAGGIO COMMON A LA RANGE-AP8220460

13
P2R reference P2R reference 72284
Maker reference Maker reference AP8220460

BUSH OEM PIAGGIO COMMON A LA RANGE-AP8220460

More information

Quantity required : 3

AP8220396 - TIGE

14
P2R reference P2R reference 72282
Maker reference Maker reference AP8220396

AP8220396 - TIGE

More information

Quantity required : 3

WASHER PLATE (12. 2X22X2) OEM PIAGGIO COMMON A LA RANGE-AP8152018

15
P2R reference P2R reference 71909
Maker reference Maker reference AP8152018

WASHER PLATE (12. 2X22X2) OEM PIAGGIO COMMON A LA RANGE-AP8152018

More information

Quantity required : 1

NUT FLANGE AUTOBLOQUANT/NYLSTOP (M10) OEM PIAGGIO COMMON A LA RANGE-AP8152301

16
P2R reference P2R reference 71960
Maker reference Maker reference AP8152301

NUT FLANGE AUTOBLOQUANT/NYLSTOP (M10) OEM PIAGGIO COMMON A LA RANGE-AP8152301

More information

Quantity required : 2

AP8220376 - SILENTBLOC BIELLE

17
P2R reference P2R reference 56870
Maker reference Maker reference AP8220376

AP8220376 - SILENTBLOC BIELLE

More information

Quantity required : 2
