Vehicle Exploded View - APRILIA RALLY 50 H2O 1996-1999
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

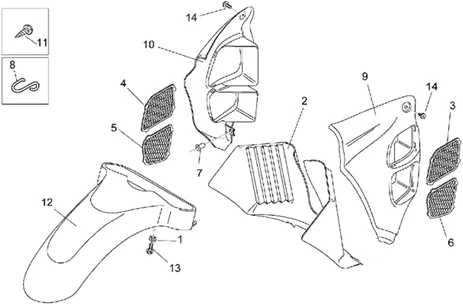

Chassis : 28.07 CARROSSERIE AV. III
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/263/Rally_50_H2O_1996-1999_28.07.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/3/2/img/71432.jpg)
1 |
BUSH EN T (6. 1X10X5. 5) OEM PIAGGIO COMMON A LA RANGE-AP8121075 More informationQuantity required : 3 |
|||||||||
2 |
AP8238490 - GRILLE RADIATEUR NOIRE; More informationQuantity required : 1 |
|||||||||
|
3 |
Grill.conv.sup.gche n; |
|||||||||
|
4 |
AP8238478 - GRILLE CONV.SUP.DTE N; More informationQuantity required : 1 |
|||||||||
|
5 |
Grille conv.inf.dte noir; |
|||||||||
|
6 |
AP8238708 - GRILLE CONV.INF.GCHE N; More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/9/1/img/71191.jpg)
7 |
RIVET EN PLASTIQUE CARROSSERIE OEM PIAGGIO COMMON A TOUTE LA RANGE-AP8102671 More informationQuantity required : 6 |
|||||||||
|
8 |
AP8220269-GUIDE-CABLE More informationQuantity required : 1 |
|||||||||
|
9 |
Convoyeur G, gris m.; |
|||||||||
|
9 |
Convoyeur G, bleu; |
|||||||||
|
9 |
Convoyeur G, orange; |
|||||||||
|
9 |
Convoyeur G, alu/bleu; |
|||||||||
|
9 |
Convoyeur G, alu/rouge; |
|||||||||
|
10 |
Convoyeur D, gris m.; |
|||||||||
|
10 |
Convoyeur D, bleu; |
|||||||||
|
10 |
Convoyeur D orange; |
|||||||||
|
10 |
Convoyeur D, alu/bleu; |
|||||||||
|
10 |
Convoyeur D, alu/rouge; |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/7/img/71887.jpg)
11 |
SCREW CRUCIFORME (3. 9X10) TARAUD STAINLESS STEEL FOR PLASTIQUE OEM PIAGGIO COMMON A LA RANGE-AP8150444 More informationQuantity required : 8 |
|||||||||
|
12 |
Garde-boue avant peint gris; |
|||||||||
|
12 |
Garde-boue AV bleu; |
|||||||||
|
12 |
Garde-boue avant peint orange; |
|||||||||
|
12 |
AP8226458 - GARDE-BOUE AVANT PEINT GRIS; More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/6/8/3/img/151683.jpg)
13 |
SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8152278 More informationQuantity required : 2 |
|||||||||
|
14 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE -AP8152302 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/1/4/4/8/3/img/214483.jpg)
14 |
SCREW BTR DE FAIRING (5X12) OEM PIAGGIO COMMON A LA RANGE-2B014101 More informationQuantity required : 2 |
|||||||||
