Vehicle Exploded View - APRILIA RALLY 50 H2O 1996-1999
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

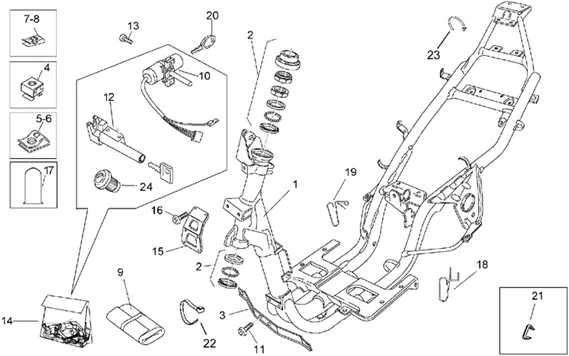

Chassis : 28.01 CHASSIS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/263/Rally_50_H2O_1996-1999_28.01.PNG)
1 |
CADRE |
||||||
|
2 |
AP8203666 - SERIE DIRECTION COMPLETE More informationQuantity required : 1 |
||||||
|
3 |
AP8234080 - SUPPORT AVANT REPOSE-PIEDS; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/7/0/2/1/img/57021.jpg)
4 |
NUT EN CAGE M6 OEM PIAGGIO COMMON A LA RANGE-AP8221213 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/4/img/71174.jpg)
5 |
NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-AP8102375 More informationQuantity required : 9 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
6 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 3 |
||||||
|
7 |
AP8201764-CLIP FOR SCREW TARAUD More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/4/3/img/72143.jpg)
8 |
NUT SHEET METAL OEM PIAGGIO COMMON A LA RANGE-AP8201763 More informationQuantity required : 1 |
||||||
|
9 |
AP8201685 - TROUSSE A OUTILS More informationQuantity required : 1 |
||||||
|
10 |
ELECTRIC STARTER "PIAGGIO GENUINE PART" APRILIA 50 SR, RALLY, GULLIVER -AP8201600- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/1/img/71941.jpg)
11 |
SCREW FLANGE TH (6X12) OEM PIAGGIO COMUUN A LA RANGE-AP8152277 More informationQuantity required : 2 |
||||||
|
12 |
AP8202362 - SERRATURA SELLA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/1/9/img/71919.jpg)
13 |
SCREW A ARRACHEMENT/AUTO-CASSANTE TH (6X17) OEM PIAGGIO COMMON A LA RANGE-AP8152140 More informationQuantity required : 1 |
||||||
|
14 |
AP8201845 - KIT SERRURE More informationQuantity required : 1 |
||||||
|
15 |
Support tablier avant; |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/6/8/3/img/151683.jpg)
16 |
SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8152278 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/8/4/img/72284.jpg)
17 |
BUSH OEM PIAGGIO COMMON A LA RANGE-AP8220460 More informationQuantity required : 1 |
||||||
|
18 |
Guide-câble |
||||||
|
19 |
AP8221248 - GUIDE CABLE PIPE BOUGIE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/4/2/3/img/45423.jpg)
20 |
EBAUCHE DE CLE FRAISEE WITHOUT TRANSPONDEUR OEM APRILIA COMMON A LA RANGE-AP8104613 More informationQuantity required : 1 |
||||||
|
21 |
AP8121309-SPRING CONNECTEURS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/1/1/img/71411.jpg)
22 |
HOSE CLAMP NYLON TYPE RILSAN 4, 5X280MM OEM PIAGGIO COMMON A LA RANGE-AP8120657 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/9/4/img/71394.jpg)
23 |
HOSE CLAMP NYLON TYPE RILSAN 4, 5X180MM OEM PIAGGIO COMMON A LA RANGE-AP8120416 More informationQuantity required : 1 |
||||||
|
24 |
KIT LOCK HATCH FUEL OEM PIAGGIO APRILIA 125 ATLANTIC, CLASSIC, EUROPA, LEONARDO, 50 RS-AP8104609 More informationQuantity required : 1 |
