Vehicle Exploded View - APRILIA RALLY 50 H2O 1996-1999
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

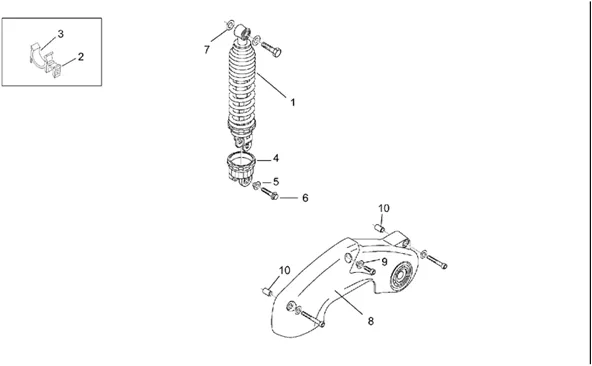

Chassis : 28.20 AMORTISSEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/263/Rally_50_H2O_1996-1999_28.20.PNG)
1 |
Amortisseur-bague bleu |
||||||
|
1 |
AP8203750 - AMORTISSEUR-BAGUE GRISE; More informationQuantity required : 1 |
||||||
|
2 |
AP8201808-GUIDE-CABLE More informationQuantity required : 2 |
||||||
|
3 |
AP8201807-GUIDE-CABLE More informationQuantity required : 2 |
||||||
|
4 |
AP8201812 - COUVERCLE AMORTISSEUR, NOIR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/3/3/img/71433.jpg)
5 |
WASHER EN T (8. 2X12X4) FOR SCREW OF 6 OEM PIAGGIO COMMON A LA RANGE-AP8121096 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/1/img/71951.jpg)
6 |
SCREW FLANGE TH (8X35) OEM PIAGGIO COMMON A LA RANGE-AP8152289 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/4/0/img/71840.jpg)
7 |
WASHER ELASTIC COURBE (11X21X1) OEM PIAGGIO COMMON A LA RANGE-AP8150210 More informationQuantity required : 2 |
||||||
|
8 |
Couv. divers.p.gris; |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/3/2/img/71432.jpg)
9 |
BUSH EN T (6. 1X10X5. 5) OEM PIAGGIO COMMON A LA RANGE-AP8121075 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/9/2/7/img/46927.jpg)
10 |
BUSH SPACER (6X10X16) OEM PIAGGIO COMMON A LA RANGE-AP8121718 More informationQuantity required : 2 |
