Vehicle Exploded View - APRILIA RALLY 50 H2O 1996-1999
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

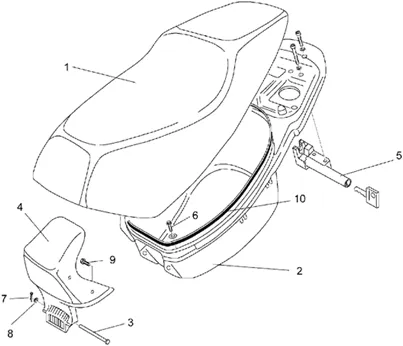

Chassis : 28.10 SELLE ET COMPART.P-CASQUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/263/Rally_50_H2O_1996-1999_28.10.PNG)
1 |
AP8229149 - SELLE CPL LONGUE, NOIR; More informationQuantity required : 1 |
||||||
|
1 |
Selle longue bl-noir; |
||||||
|
1 |
AP8229262 - SELLE CPL LONGUE GRIS-BLEU; More informationQuantity required : 1 |
||||||
|
1 |
Selle cpl longue gris-rouge; |
||||||
|
2 |
AP8230923 - COMPART.P-CASQUE; More informationQuantity required : 1 |
||||||
|
3 |
AP8221173 - PIVOT CHARNIERE SELLE More informationQuantity required : 1 |
||||||
|
4 |
Attache struct.selle, bleu; |
||||||
|
4 |
AP8238709 - ATTACHE STRUCT.SELLE, GRIS; More informationQuantity required : 1 |
||||||
|
4 |
Attache struct.selle, orange; |
||||||
|
4 |
Attache struct.selle, alu.; |
||||||
|
5 |
AP8201564-LOCK SEAT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/2/img/71942.jpg)
6 |
SCREW FLANGE TH (6X20) OEM PIAGGIO COMMON A LA RANGE-AP8152279 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/3/8/img/72138.jpg)
7 |
GOUPILLE OEM PIAGGIO COMMON A LA RANGE/SPINDLE HATCH FUEL DERBI 50 SENDA 2018 >-AP8201643 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/5/3/8/5/img/55385.jpg)
8 |
WASHER EVENTAIL MOUNTING CROCHET DE LOCK OEM PIAGGIO APRILIA ATLANTIC 125-250-500 2003 > 2012, RS 125 2011 > 2017, RS 50 2006 > 2016, SR 50 1993 > 2014-AP8201748 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/6/8/3/img/151683.jpg)
9 |
SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8152278 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/1/7/2/4/img/41724.jpg)
10 |
HELMET COMPARTMENT GASKET "PIAGGIO GENUINE PART" APRILIA 50 RALLY, SR, MOJITO, AMICO -890507 More informationQuantity required : 1 |
