Vehicle Exploded View - APRILIA RALLY 50 H2O 1996-1999 APRILIA

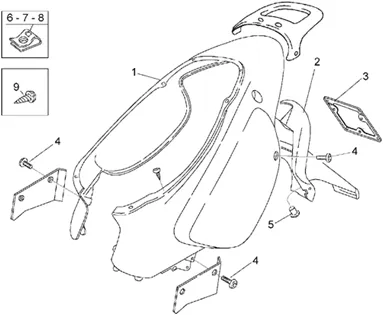

Chassis : 28.11 CARROSSERIE POSTERIEURE I
Carrosserie posterieure I
Search
Queue, gris m.;

1
P2R reference P2R reference
Maker reference Maker reference AP8238472

Queue, gris m.;

Queue, bleue;

1
P2R reference P2R reference
Maker reference Maker reference AP8238880

Queue, bleue;

Queue percée, gris;

1
P2R reference P2R reference
Maker reference Maker reference AP8239095

Queue percée, gris;

Queue percée, bleu;

1
P2R reference P2R reference
Maker reference Maker reference AP8239096

Queue percée, bleu;

Queue, orange;

1
P2R reference P2R reference
Maker reference Maker reference AP8239211

Queue, orange;

Queue percée, or.;

1
P2R reference P2R reference
Maker reference Maker reference AP8239227

Queue percée, or.;

Queue, alu./bleu;

1
P2R reference P2R reference
Maker reference Maker reference AP8239694

Queue, alu./bleu;

AP8239695 - QUEUE PERCEE, ALU./BLEU;

1
P2R reference P2R reference 58383
Maker reference Maker reference AP8239695

AP8239695 - QUEUE PERCEE, ALU./BLEU;

More information

Quantity required : 1

Queue, alu./rouge;

1
P2R reference P2R reference
Maker reference Maker reference AP8248226

Queue, alu./rouge;

Queue percée, alu./rouge;

1
P2R reference P2R reference
Maker reference Maker reference AP8248227

Queue percée, alu./rouge;

Support feu/porte-t. gris;

2
P2R reference P2R reference
Maker reference Maker reference AP8238854

Support feu/porte-t. gris;

Support plaque;

3
P2R reference P2R reference
Maker reference Maker reference AP8234069

Support plaque;

SCREW FLANGE BTR (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8152246

4
P2R reference P2R reference 71933
Maker reference Maker reference AP8152246

SCREW FLANGE BTR (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8152246

More information

Quantity required : 4

BUSH EN T INNER 5 MM OEM PIAGGIO COMMON A LA RANGE-AP8121795

5
P2R reference P2R reference 71485
Maker reference Maker reference AP8121795

BUSH EN T INNER 5 MM OEM PIAGGIO COMMON A LA RANGE-AP8121795

More information

Quantity required : 2

NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-AP8102375

6
P2R reference P2R reference 71174
Maker reference Maker reference AP8102375

NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-AP8102375

More information

Quantity required : 5

NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485

7
P2R reference P2R reference 66009
Maker reference Maker reference 254485

NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485

More information

Quantity required : 5

AP8201764 - CLIP POUR VIS TARAUD

8
P2R reference P2R reference 72144
Maker reference Maker reference AP8201764

AP8201764-CLIP FOR SCREW TARAUD

More information

Quantity required : 5

SCREW CRUCIFORME (3. 9X14) TARAUD FAIRING INOX OEM PIAGGIO COMMON A TOUTE LA RANGE MOTO-AP8150413

9
P2R reference P2R reference 71876
Maker reference Maker reference AP8150413

SCREW CRUCIFORME (3. 9X14) TARAUD FAIRING INOX OEM PIAGGIO COMMON A TOUTE LA RANGE MOTO-AP8150413

More information

Quantity required : 6
