Vehicle Exploded View - VESPA VESPA LT 150 4T 3V IE 2014
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

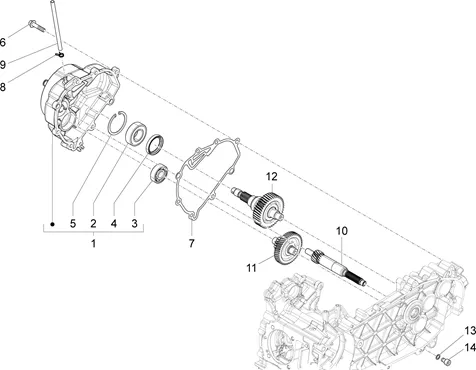

Moteur : 01.25 ENSEMBLE RÉDUCTEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/722/Vespa_LT_150_4T_3V_IE_2014_01.25.PNG)
1 |
B0177095-COVER REDUCTION More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/2/7/4/img/127274.jpg)
2 |
BEARING (25X52X15) REDUCTEUR OEM PIAGGIO FLY, LIBERTY 2014 > 2015-1A005346R More informationQuantity required : 1 |
||||||
|
2 |
BEARING (25X52X15) REDUCTEUR OEM PIAGGIO FLY, LIBERTY 2014 > 2015-1A005346R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/2/8/4/7/img/92847.jpg)
3 |
BEARING (15X42X13) RADIAL ENSEMBLE REDUCTEUR OEM COMMON A LA RANGE PIAGGIO-83026R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/6/9/0/img/72690.jpg)
4 |
OIL SEAL (35X47X7) OEM PIAGGIO COMMON A LA RANGE-B015623 More informationQuantity required : 1 |
||||||
|
5 |
B016556-MODELLO ZANG More informationQuantity required : 1 |
||||||
|
6 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/4/6/9/7/img/94697.jpg)
7 |
GASKET COVER DE REDUCTEUR OEM PIAGGIO 125 2012 > COMMON A LA RANGE-B016456 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/9/4/img/72894.jpg)
8 |
HOSE CLAMP HOSE (10X13) OEM PIAGGIO COMMON A LA RANGE-CM002908 More informationQuantity required : 1 |
||||||
|
9 |
B018670-TUBE More informationQuantity required : 1 |
||||||
|
10 |
B017168-SHAFT DE PULLEY More informationQuantity required : 1 |
||||||
|
11 |
4871265-SHAFT DE RENVOI More informationQuantity required : 1 |
||||||
|
12 |
B016770 - AXE ROUE ARR. More informationQuantity required : 1 |
||||||
|
13 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/8/5/img/66085.jpg)
14 |
SCREW BTR (8X12) OEM PIAGGIO COMMON A LA RANGE-269755 More informationQuantity required : 2 |
