Vehicle Exploded View - VESPA VESPA LT 150 4T 3V IE 2014
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

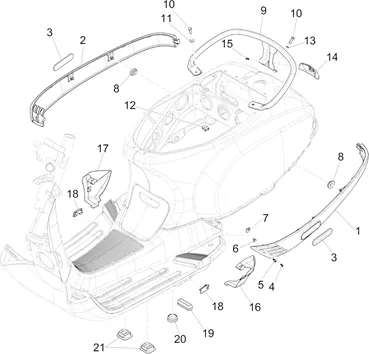

Châssis - parties plastiques - carrosseries : 02.32 COUVERTURES LATERALES - SPOILER
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/722/Vespa_LT_150_4T_3V_IE_2014_02.32.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/4/6/9/7/img/84697.jpg)
1 |
BAS BODY PANEL LEFT OEM PIAGGIO 50 VESPA LX 2006 >-622901000P More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/4/6/9/9/img/84699.jpg)
2 |
REAR RIGHT SIDE COVER (LOW PART) "PIAGGIO GENUINE PART" 50 VESPA LX 2006> -622902000P More informationQuantity required : 1 |
||||||
3 |
5A000171 - MONOGRAMME More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/3/5/img/66035.jpg)
4 |
SCREW AUTOTARAUDEUSE (4, 2X13) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-259349 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/0/1/img/66301.jpg)
5 |
SCREW OF FAIRING (3, 5X13) OEM PIAGGIO COMMON A TOUTE LA RANGE-297498 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/8/3/2/img/65832.jpg)
6 |
AGRAPHE/CHEVILLE A EXPANSION OEM PIAGGIO COMMON A TOUTE LE RANGE-199190 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/6/img/72926.jpg)
7 |
NUT SHEET METAL (4, 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-CM017410 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/8/5/0/img/65850.jpg)
8 |
BUFFER/SILENCBLOC DE FAIRING OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-1B000888 More informationQuantity required : 4 |
||||||
|
9 |
GRIP PASSENGER OEM PIAGGIO 50-125 VESPA LX 2005 >-657109 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/4/1/img/65641.jpg)
10 |
SCREW TH (6X20) OEM PIAGGIO COMMON A LA RANGE-031090 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/6/4/img/65664.jpg)
11 |
WASHER SPRING (6, 4X16X1) OEM PIAGGIO COMMON A LA RANGE-078307 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
12 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/4/5/img/65345.jpg)
13 |
WASHER EVENTAIL (6, 6X11X0) OEM PIAGGO COMMON A LA RANGE-012533 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/4/8/0/1/img/84801.jpg)
14 |
COVER/COVER SEAT CHROME OEM PIAGGIO 125-300 GTS 2009 > 2018-623336 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/7/4/img/66074.jpg)
15 |
SCREW AUTOTARAUDEUSE (4X13) OEM PIAGGIO COMMON A TOUTE LA RANGE-268596 More informationQuantity required : 1 |
||||||
|
16 |
COUVERTURE SPOILER GAU. |
||||||
|
16 |
5A000087000AI - COUVERTURE SPOILER GAU. More informationQuantity required : 1 |
||||||
|
16 |
5A000087000R7-COVER SPOILER GAU. More informationQuantity required : 1 |
||||||
|
17 |
COVER SPOILER RIGHT OEM PIAGGIO 50-125 VESPA LX, VESPA-S UNPAINTED READY TO PAINT-5A000086 More informationQuantity required : 1 |
||||||
|
17 |
5A000086000AI - COUVERTURE SPOILER DR More informationQuantity required : 1 |
||||||
|
17 |
5A000086000R7-COVER SPOILER DR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/3/6/8/4/img/83684.jpg)
18 |
620556 - BOUCHON More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/8/0/6/6/img/78066.jpg)
19 |
CAP OEM PIAGGIO COMMON A LA RANGE-299558 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/8/0/6/7/img/78067.jpg)
20 |
CAP DE FRAME OEM PIAGGIO COMMON A LA RANGE-299559 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/8/0/6/5/img/78065.jpg)
21 |
CAP DE FRAME OEM PIAGGIO COMMON A LA RANGE-299557 More informationQuantity required : 2 |
