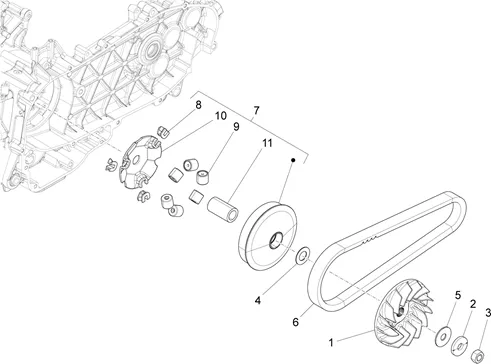

Vehicle Exploded View - VESPA VESPA LT 150 4T 3V IE 2014 VESPA

Moteur : 01.13 POULIE MOTRICE
Poulie motrice
Search
FLASQUE/JOUE FIXE DE PULLEY MOTRICE OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125 CC INJECTION-876921

1
P2R reference P2R reference 70638
Maker reference Maker reference 876921

FLASQUE/JOUE FIXE DE PULLEY MOTRICE OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125 CC INJECTION-876921

More information

Quantity required : 1

WASHER ELASTIC DE PULLEY MOTRICE OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125-250-300 CC-880950

2
P2R reference P2R reference 70743
Maker reference Maker reference 880950

WASHER ELASTIC DE PULLEY MOTRICE OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125-250-300 CC-880950

More information

Quantity required : 1

ECROU HEXAGONAL M12x1.25-6H

3
P2R reference P2R reference
Maker reference Maker reference B016001

ECROU HEXAGONAL M12x1.25-6H

RONDELLE

4
P2R reference P2R reference
Maker reference Maker reference B016003

RONDELLE

5
P2R reference P2R reference
Maker reference Maker reference B0160045

BELT OEM PIAGGIO 125 LIBERTY, MP3, X7, X8, X9, X-EVO, FLY, VESPA LX, VESPA GTS, YOURBAN/APRILIA 125 ATLANTIC, SR-MAX/GILERA 125 NEXUS, RUNNER 2015 <-841213

6
P2R reference P2R reference 69179
Maker reference Maker reference 841213

BELT OEM PIAGGIO 125 LIBERTY, MP3, X7, X8, X9, X-EVO, FLY, VESPA LX, VESPA GTS, YOURBAN/APRILIA 125 ATLANTIC, SR-MAX/GILERA 125 NEXUS, RUNNER 2015 <-841213

More information

Quantity required : 1

CM257703 - CONTENANT DES ROULEAUX

7
P2R reference P2R reference 96326
Maker reference Maker reference CM257703

CM257703-CONTENANT DES ROULEAUX

More information

Quantity required : 1

GUIDE/PATIN DE VARIATOR OEM PIAGGIO 125 MEDLEY 2016 > 2020/SR GT COMPACT APRILIA 2021 >, VESPA GTS 2016 >-1A015664

8
P2R reference P2R reference 203871
Maker reference Maker reference B017219

GUIDE/PATIN DE VARIATOR OEM PIAGGIO 125 MEDLEY 2016 > 2020/SR GT COMPACT APRILIA 2021 >, VESPA GTS 2016 >-1A015664

More information

Quantity required : 3

GUIDE/PATIN DE VARIATOR OEM PIAGGIO 125 MEDLEY 2016 > 2020/SR GT COMPACT APRILIA 2021 >, VESPA GTS 2016 >-1A015664

8
P2R reference P2R reference 203871
Maker reference Maker reference 1A015664

GUIDE/PATIN DE VARIATOR OEM PIAGGIO 125 MEDLEY 2016 > 2020/SR GT COMPACT APRILIA 2021 >, VESPA GTS 2016 >-1A015664

More information

Quantity required : 3

B019236 - ROULEAU

9
P2R reference P2R reference 94863
Maker reference Maker reference B019236

B019236-ROLLER

More information

Quantity required : 6

FLASQUE A ROULEAUX PULLEY MOTRICE OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125-250-300 CC-485710

10
P2R reference P2R reference 66690
Maker reference Maker reference 485710

FLASQUE A ROULEAUX PULLEY MOTRICE OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125-250-300 CC-485710

More information

Quantity required : 1

483889 - ENTRETOISE

11
P2R reference P2R reference 66648
Maker reference Maker reference 483889

483889-SPACER

More information

Quantity required : 1
