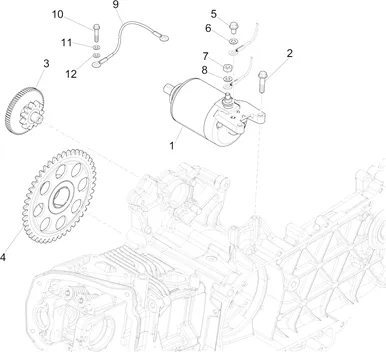

Vehicle Exploded View - VESPA VESPA LT 150 4T 3V IE 2014 VESPA

Moteur : 01.20 DÉMARRAGE - DÉMARRAGE ÉLECTRIQUE
Démarrage - Démarrage électrique
Search
STARTER MOTOR OEM PIAGGIO 125-300 MP3, YOURBAN, VESPA GTS, X7, BEVERLY, 250 X8, X-EVO, X9/GILERA 125-250-300 NEXUS/APRILIA 125-250-300 ATLANTIC, SCARABEO, SPORT-CITY, 125-300 SR-MAX-1A011611R

1
P2R reference P2R reference 156038
Maker reference Maker reference 1A011611R

STARTER MOTOR OEM PIAGGIO 125-300 MP3, YOURBAN, VESPA GTS, X7, BEVERLY, 250 X8, X-EVO, X9/GILERA 125-250-300 NEXUS/APRILIA 125-250-300 ATLANTIC, SCARABEO, SPORT-CITY, 125-300 SR-MAX-1A011611R

More information

Quantity required : 1

STARTER MOTOR OEM PIAGGIO 125-300 MP3, YOURBAN, VESPA GTS, X7, BEVERLY, 250 X8, X-EVO, X9/GILERA 125-250-300 NEXUS/APRILIA 125-250-300 ATLANTIC, SCARABEO, SPORT-CITY, 125-300 SR-MAX-1A011611R

1
P2R reference P2R reference 156038
Maker reference Maker reference 1A009964R

STARTER MOTOR OEM PIAGGIO 125-300 MP3, YOURBAN, VESPA GTS, X7, BEVERLY, 250 X8, X-EVO, X9/GILERA 125-250-300 NEXUS/APRILIA 125-250-300 ATLANTIC, SCARABEO, SPORT-CITY, 125-300 SR-MAX-1A011611R

More information

Quantity required : 1

SCREW FLANGE TH (6X25) OEM COMMON A LA RANGE PIAGGIO-1A000350

2
P2R reference P2R reference 75302
Maker reference Maker reference 1A000350

SCREW FLANGE TH (6X25) OEM COMMON A LA RANGE PIAGGIO-1A000350

More information

Quantity required : 2

880317 - RENVOI

3
P2R reference P2R reference 93375
Maker reference Maker reference 880317

880317-RENVOI

More information

Quantity required : 1

B014165 - CORONA DE DEPART

4
P2R reference P2R reference 94554
Maker reference Maker reference B014165

B014165-CORONA DE DEPART

More information

Quantity required : 1

SCREW FLANGE TH (6X10) OEM PIAGGIO COMMON A LA RANGE-969296

5
P2R reference P2R reference 70959
Maker reference Maker reference 969296

SCREW FLANGE TH (6X10) OEM PIAGGIO COMMON A LA RANGE-969296

More information

Quantity required : 1

WASHER ELASTIC (6. 4X12X0. 5) OEM PIAGGIO COMMON A LA RANGE-006976

6
P2R reference P2R reference 63841
Maker reference Maker reference 0069765

WASHER ELASTIC (6. 4X12X0. 5) OEM PIAGGIO COMMON A LA RANGE-006976

More information

Quantity required : 1

NUT (M6) OEM PIAGGIO COMMON A LA RANGE-020106

7
P2R reference P2R reference 65461
Maker reference Maker reference 0201065

NUT (M6) OEM PIAGGIO COMMON A LA RANGE-020106

More information

Quantity required : 1

WASHER ELASTIC (6, 4X11, 8X1) OEM PIAGGIO COMMON A LA RANGE-016406

8
P2R reference P2R reference 65416
Maker reference Maker reference 0164065

WASHER ELASTIC (6, 4X11, 8X1) OEM PIAGGIO COMMON A LA RANGE-016406

More information

Quantity required : 1

581309 - PROTECTION

9
P2R reference P2R reference 67210
Maker reference Maker reference 581309

581309 - PROTECTION

More information

Quantity required : 1

641204 - BOULON

10
P2R reference P2R reference 67915
Maker reference Maker reference 641204

641204-BOLT

More information

Quantity required : 1

WASHER ELASTIC (6, 4X11, 8X1) OEM PIAGGIO COMMON A LA RANGE-016406

11
P2R reference P2R reference 65416
Maker reference Maker reference 0164065

WASHER ELASTIC (6, 4X11, 8X1) OEM PIAGGIO COMMON A LA RANGE-016406

More information

Quantity required : 1

WASHER PLATE (6X12X1) OEM PIAGGIO COMMON A LA RANGE-003056

12
P2R reference P2R reference 63777
Maker reference Maker reference 0030565

WASHER PLATE (6X12X1) OEM PIAGGIO COMMON A LA RANGE-003056

More information

Quantity required : 1
