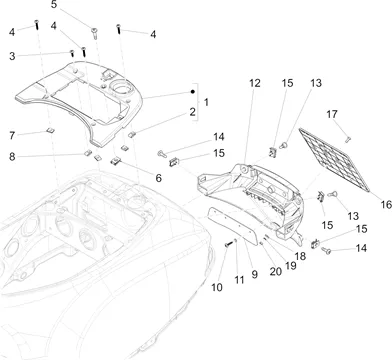

Châssis - parties plastiques - carrosseries : 02.37 COUVERCLE ARRIÈRE - PARE-BOUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/722/Vespa_LT_150_4T_3V_IE_2014_02.37.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/9/1/7/3/img/89173.jpg)
1 |
COVER/COVER BATTERY WITH CROCHET FOR LA SEAT OEM PIAGGIO 50-125 VESPA LX 4T, VESPA S 4T-656303 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/6/img/72926.jpg)
2 |
NUT SHEET METAL (4, 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-CM017410 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/3/5/img/66035.jpg)
3 |
SCREW AUTOTARAUDEUSE (4, 2X13) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-259349 More informationQuantity required : 1 |
|||||||||
4 |
|
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/4/3/img/66043.jpg)
5 |
SCREW - (6X20) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -259830 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
6 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/4/img/72924.jpg)
7 |
NUT SHEET METAL (4. 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-CM017408 More informationQuantity required : 2 |
|||||||||
|
8 |
NUT SHEET METAL (4, 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-CM017410 More informationQuantity required : 2 |
|||||||||
|
9 |
623420-PROTECTOR MUD More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/0/1/img/66301.jpg)
10 |
SCREW OF FAIRING (3, 5X13) OEM PIAGGIO COMMON A TOUTE LA RANGE-297498 More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/6/0/img/65360.jpg)
11 |
WASHER PLATE (4X12) OEM PIAGGIO COMMON A LA RANGE-013763 More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/4/7/0/1/img/84701.jpg)
12 |
MUD FLAP REAR OEM PIAGGIO 50 VESPA LX 2006 > BLACK-622904400P More informationQuantity required : 1 |
|||||||||
|
13 |
SCREW - (6X20) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -259830 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/1/3/img/67113.jpg)
14 |
SCREW FAIRING (M6) OEM PIAGGIO COMMON A TOUTE LA RANGE-575249 More informationQuantity required : 2 |
|||||||||
|
15 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 4 |
|||||||||
|
16 |
641524-DOOR-PLATE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/0/8/img/65408.jpg)
17 |
SCREW CRUCIFORME (4X12) OEM PIAGGIO COMMON A LA RANGE-015996 More informationQuantity required : 3 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/4/img/65414.jpg)
18 |
WASHER (4, 2X7, 6X0, 9) OEM PIAGGIO COMMON A LA RANGE-016404 More informationQuantity required : 3 |
|||||||||
|
19 |
WASHER PLATE (4X12) OEM PIAGGIO COMMON A LA RANGE-013763 More informationQuantity required : 3 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/5/9/img/65459.jpg)
20 |
NUT (M4) OEM PIAGGIO COMMON A LA RANGE-020104 More informationQuantity required : 3 |
|||||||||
