Vehicle Exploded View - VESPA VESPA LT 150 4T 3V IE 2014
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

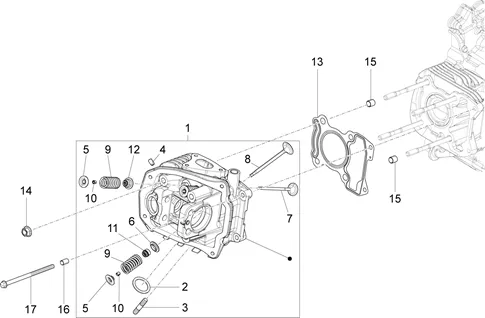

Moteur : 01.10 ENSEMBLE CULASSE - SOUPAPE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/722/Vespa_LT_150_4T_3V_IE_2014_01.10.PNG)
1 |
CYLINDER HEAD COMPLETE (VENDUE WITHOUT BASCULEURS NI CAMSHAFT) OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125 CC 3 SOUPAPES-1A007037R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/5/8/img/66458.jpg)
2 |
GASKET EXHAUST OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125 CC COOLING PER AIR-434716 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/7/8/img/66478.jpg)
3 |
STUD (M7) MOUNTING EXHAUST OEM PIAGGIO COMMON A TOUTE LA RANGE MAXI SCOOTER 125-250-300-435629 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/2/2/6/img/69226.jpg)
4 |
CAP 6X10 CASING OEM PIAGGIO COMMON A LA RANGE-842360 More informationQuantity required : 1 |
||||||
|
5 |
B013833-RONDELLES VALVE More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/3/9/img/66639.jpg)
6 |
CUP LOWER VALVE OEM PIAGGIO 125-150-200-250-300 COMMON A LA RANGE-483711 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/4/8/6/6/img/94866.jpg)
7 |
VALVE INTAKE (D20) OEM PIAGGIO 125 LIBERTY, PRIMAVERA, SPRINT 2014 >-B019320 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/4/5/2/5/img/94525.jpg)
8 |
VALVE EXHAUST (D22) OEM PIAGGIO 125 LIBERTY, PRIMAVERA, SPRINT 2014 >-B013716 More informationQuantity required : 1 |
||||||
|
9 |
879456-SPRING More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/4/6/4/5/img/94645.jpg)
10 |
HALF LUNE VALVE OEM PIAGGIO 125 MEDLEY, GTS, PRIMAVERA 2013 >/SR GT APRILIA 2021 >-B015484 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/9/3/img/66493.jpg)
11 |
GASKET/BUSH OF VALVE OEM PIAGGIO COMMON A LA RANGE-436438 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/2/7/6/img/69276.jpg)
12 |
GASKET OF VALVE OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC 4T ET MAXI SCOOTER 125 CC COOLING PER AIR-843307 More informationQuantity required : 2 |
||||||
|
13 |
1A000174-CYLINDER HEAD GASKET More informationQuantity required : 1 |
||||||
|
14 |
|
||||||
|
15 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/4/2/img/66142.jpg)
16 |
PION DE CENTRAGE (7, 5X12) OEM PIAGGIO COMMON A LA RANGE-277916 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/3/2/img/72732.jpg)
17 |
SCREW FLANGE TH (6X112. 5) OEM PIAGGIO COMMON A LA RANGE-B016807 More informationQuantity required : 2 |
