Vehicle Exploded View - VESPA VESPA LT 150 4T 3V IE 2014
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

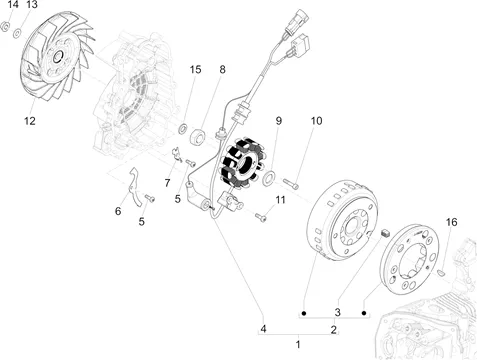

Moteur : 01.21 VOLANT MAGNETIQUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/722/Vespa_LT_150_4T_3V_IE_2014_01.21.PNG)
1 |
B018107-VOLANT MAGNETIQUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/4/8/0/9/img/94809.jpg)
2 |
ROTOR COMPLETE WITH WHEEL LIBRE OEM PIAGGIO 125 FLY, LIBERTY, VESPA GTS, VESPA LX, PRIMAVERA, SPRINT, VESPA-S (ENGINE 3 SOUPAPES ET IGET) 2020 <-B018108 More informationQuantity required : 1 |
||||||
|
3 |
B019134-SPRING More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/4/7/0/3/img/94703.jpg)
4 |
STATOR OEM PIAGGIO 125 FLY, LIBERTY, LX, S 2012 > 2015-B016543 More informationQuantity required : 1 |
||||||
|
5 |
|
||||||
|
6 |
B018105-PLATE More informationQuantity required : 1 |
||||||
|
7 |
B018106-PLATE More informationQuantity required : 1 |
||||||
|
8 |
NUT IGNITION (M16X1. 25) OEM PIAGGIO 125 FLY, LIBERTY, VESPA LX, PRIMAVERA, SPRINT-B015996 More informationQuantity required : 1 |
||||||
|
9 |
B018464-WASHER More informationQuantity required : 1 |
||||||
|
10 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/1/6/7/img/127167.jpg)
11 |
SCREW CRUCIFORME (5X16) OEM PIAGGIO COMMON A LA RANGE-1A003109 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/5/3/5/0/img/75350.jpg)
12 |
TURBINE/VENTILATEUR IGNITION OEM PIAGGIO 125-150 FLY, LIBERTY, PRIMAVERA, SPRINT 2013 >-1A001379 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/9/img/63779.jpg)
13 |
WASHER PLATE (8, 4X15X1, 5) OEM PIAGGIO COMMON A LA RANGE-003058 More informationQuantity required : 1 |
||||||
|
14 |
|
||||||
|
15 |
B015807-WASHER More informationQuantity required : 1 |
||||||
|
16 |
CLAVETTE |
