Vehicle Exploded View - VESPA VESPA LT 150 4T 3V IE 2014
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

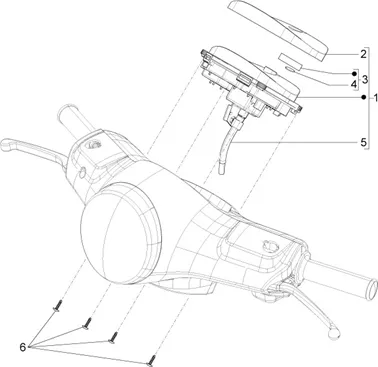

Guidon/direction : 03.02 GROUPE INSTRUMENTS - CRUSCOTTO
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/722/Vespa_LT_150_4T_3V_IE_2014_03.02.PNG)
1 |
1D000183 - GROUPE INSTRUMENT More informationQuantity required : 1 |
||||||
|
2 |
680028-TRANSPARENT FOR 10 TROUS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/8/7/img/72187.jpg)
3 |
HORLOGE/MONTRE OEM PIAGGIO 50-125 VESPA LX, VESPA-S, LIBERTY, 125-250-300 VESPA GTS, X7, THREE-WHEELER APE 50/APRILIA 125-250-300-400-500 ATLANTIC, 125 SCARABEO/GILERA 50 STAKER-AP8212406 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/9/7/0/img/66970.jpg)
4 |
PILE HORLOGE OEM PIAGGIO 50-125 VESPA LX, VESPA-S, FLY, LIBERTY, 125-250-300 VESPA GTS, 125-250 X7, 50 TYPHOON 1998 > 2004/GILERA 50 STALKER-498342 More informationQuantity required : 1 |
||||||
|
5 |
642381-WIRING HARNESS ÉLETRIQUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/2/5/img/66025.jpg)
6 |
SCREW AUTOTARAUDEUSE (3X20) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-258146 More informationQuantity required : 4 |
