Vehicle Exploded View - VESPA VESPA LT 150 4T 3V IE 2014
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

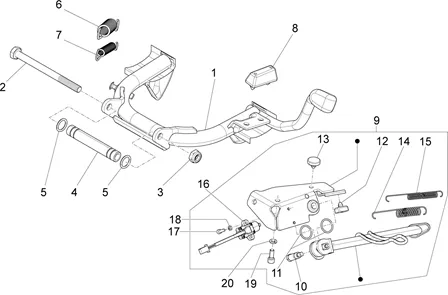

Châssis - parties plastiques - carrosseries : 02.25 BÉQUILLE/S
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/722/Vespa_LT_150_4T_3V_IE_2014_02.25.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/2/7/2/5/img/82725.jpg)
1 |
CENTER STAND "PIAGGIO GENUINE PART" VESPA 125 LX 2012>, VESPA-S 2012> -5A000036- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/0/3/4/2/img/90342.jpg)
2 |
SCREW TH (10X130) OEM PIAGGIO COMMON A LA RANGE-668187 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/6/5/img/63765.jpg)
3 |
NUT AUTOBLOQUANT/NYLSTOP (M10) OEM PIAGGIO COMMON A LA RANGE-002440 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/5/1/img/67251.jpg)
4 |
SPACER DE STAND OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-582298 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/2/7/img/66127.jpg)
5 |
GASKET SHAFT OF STAND OEM PIAGGIO COMMON A LA RANGE-273754 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/0/9/img/67209.jpg)
6 |
SPRING DE CENTRE STAND OEM PIAGGIO COMMON A TOUTE LA RANGE-581249 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/0/8/img/67208.jpg)
7 |
SPRING DE STAND OEM PIAGGIO COMMON A TOUTE LA RANGE-581248 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/0/4/3/img/67043.jpg)
8 |
BUFFER DE STAND OEM PIAGGIO 50 VESPA LX 4T, VESPA-S 4T, ZIP 4T, LIBERTY 4T, 125 VESPA LX, VESPA-S, FLY, 400-500 BEVERLY-563984 More informationQuantity required : 1 |
||||||
9 |
666260 - BEQUILLE More informationQuantity required : 1 |
||||||
|
10 |
665965-SCREW More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/8/1/2/img/65812.jpg)
11 |
O-RING SIDE STAND OEM PIAGGIO 400-500 MP3, BEVERLY, 400 X8, X-EVO, 500 X10, X9/GILERA 500 NEXUS, FUOCO, GP 800/APRILIA 400-500 ATLANTIC, SCARABEO, 850 SRV-191189 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/6/8/img/67268.jpg)
12 |
BUFFER DE STAND OEM PIAGGIO COMMON LA RANGE SCOOTER ET MAXI SCOOTER-582885 More informationQuantity required : 1 |
||||||
|
13 |
666895-BUFFER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/8/7/img/66287.jpg)
14 |
SPRING DE STAND LATERAL OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-295789 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/8/6/img/66286.jpg)
15 |
SPRING DE STAND OEM PIAGGIO COMMON A TOUTE LA RANGE-295788 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/8/3/7/img/67837.jpg)
16 |
CONTACTEUR DE SIDE STAND OEM PIAGGIO COMMON A TOUTE LA RANGE-639542 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/5/7/img/66257.jpg)
17 |
SCREW BTR (5X16) OEM PIAGGIO COMMON A LA RANGE-2928896 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/8/img/65418.jpg)
18 |
WASHER (8, 15X13, 75X4, 5) OEM PIAGGIO COMMON A LA RANGE-016408 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/2/4/6/0/img/82460.jpg)
19 |
SCREW BTR (8X20) OEM PIAGGIO COMMON A LA RANGE-599009 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/5/img/65415.jpg)
20 |
WASHER GROWER (5, 1X8, 5X1, 5) OEM PIAGGIO COMMON A LA RANGE-016405 More informationQuantity required : 2 |
