Vehicle Exploded View - VESPA VESPA LT 150 4T 3V IE 2014
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

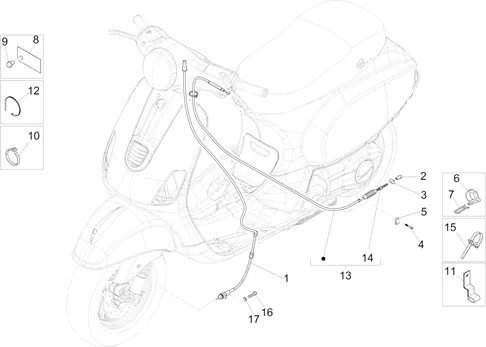

Instalation du freins - transmisisons : 05.03 TRANSMISSIONS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/722/Vespa_LT_150_4T_3V_IE_2014_05.03.PNG)
1 |
651138 - TRANSMISSION CKM More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/8/8/img/66088.jpg)
2 |
NUT REGLAGE BRAKE REAR OEM PIAGGIO COMMON A LA RANGE-270310 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/9/4/img/65794.jpg)
3 |
PIVOT TRANSMISSION BRAKE REAR OEM PIAGGIO COMMON A TOUTE LA RANGE-179640 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/9/7/img/68497.jpg)
4 |
SCREW BTR (6X20) OEM PIAGGIO COMMON A LA RANGE-709674 More informationQuantity required : 1 |
||||||
|
5 |
5A000035-PLATE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/0/5/img/72905.jpg)
6 |
CLIPS ATTACHE FASCEAU ORINE PIAGGIO COMMON A LA RANGE-CM006903 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/0/7/img/72907.jpg)
6 |
COLIIER PINCE OEM PIAGGIO COMMON A LA RANGE-CM006905 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/0/8/0/9/img/90809.jpg)
7 |
CLIPS SPRING DE STEERING OEM PIAGGIO 50-125 COMMON A LA RANGE-672491 More informationQuantity required : 1 |
||||||
|
8 |
666117-PROTECTOR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/9/5/9/img/70959.jpg)
9 |
SCREW FLANGE TH (6X10) OEM PIAGGIO COMMON A LA RANGE-969296 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/4/2/img/65742.jpg)
10 |
HOSE CLAMP NYLON TYPE RILSAN 180 MM OEM PIAGGIO COMMON A LA RANGE-145298 More informationQuantity required : 2 |
||||||
|
11 |
668477-CLAMP. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/1/7/img/66017.jpg)
12 |
HOSE CLAMP NYLON TYPE RILSAN 4, 8X270MM OEM PIAGGIO COMMON A LA RANGE-257134 More informationQuantity required : 2 |
||||||
|
13 |
668845 - TRANS. DE COMMANDE DE FREIN ARRIERE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/6/8/img/67368.jpg)
14 |
NUT OF ADJUSTMENT OF BRAKE REAR OEM PIAGGIO COMMON A LA RANGE-598918 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/0/7/img/66307.jpg)
15 |
CLAMP OEM PIAGGIO COMMON A LA RANGE-298729 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/3/4/img/65634.jpg)
16 |
SCREW TH (5X16) OEM PIAGGIO COMMON A LA RANGE-031058 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/4/0/img/63840.jpg)
17 |
WASHER (5, 3X10X0, 5) OEM PIAGGIO COMMON A LA RANGE-006975 More informationQuantity required : 1 |
