Vehicle Exploded View - VESPA VESPA LT 150 4T 3V IE 2014 VESPA

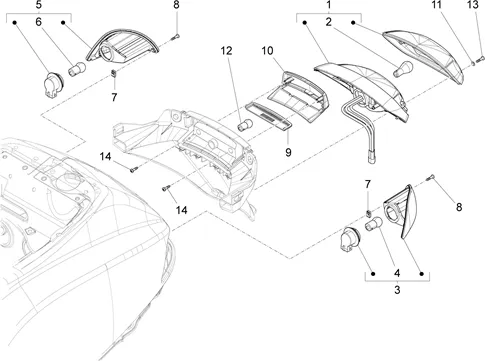

Installation électrique : 06.04 ECLAIRAGES ARRIÈRE - CLIGNOTANTS
Eclairages arrière - Clignotants
Search
SCREW CRUCIFORME (3. 5X16) AUTOTARAUDEUSE OEM PIAGGIO COMMON A LA RANGE-294678

0
P2R reference P2R reference 77798
Maker reference Maker reference 294678

SCREW CRUCIFORME (3. 5X16) AUTOTARAUDEUSE OEM PIAGGIO COMMON A LA RANGE-294678

More information

Quantity required : 0

641891 - LUMIERE ARR.

1
P2R reference P2R reference 86271
Maker reference Maker reference 641891

641891 - LUMIERE ARR.

More information

Quantity required : 1

AMPOULE

2
P2R reference P2R reference
Maker reference Maker reference 1D000392

AMPOULE

641913 -

3
P2R reference P2R reference 86277
Maker reference Maker reference 641913

641913

More information

Quantity required : 1

680234 - AMPOULE

4
P2R reference P2R reference 92169
Maker reference Maker reference 680234

680234 - AMPOULE

More information

Quantity required : 1

641914 -

5
P2R reference P2R reference 86278
Maker reference Maker reference 641914

641914

More information

Quantity required : 1

680234 - AMPOULE

6
P2R reference P2R reference 92169
Maker reference Maker reference 680234

680234 - AMPOULE

More information

Quantity required : 1

NUT SHEET METAL (3, 5 PARKER) OEM PIAGGIO COMMON A LA RANGE-CM017405

7
P2R reference P2R reference 72923
Maker reference Maker reference CM017405

NUT SHEET METAL (3, 5 PARKER) OEM PIAGGIO COMMON A LA RANGE-CM017405

More information

Quantity required : 2

SCREW PARKER (3. 5X13) CRUCIFORME DE FAIRING OEM PIAGGIO COMMON A LA RANGE-008372

8
P2R reference P2R reference 63850
Maker reference Maker reference 0083725

SCREW PARKER (3. 5X13) CRUCIFORME DE FAIRING OEM PIAGGIO COMMON A LA RANGE-008372

More information

Quantity required : 2

641446 -

9
P2R reference P2R reference 86186
Maker reference Maker reference 641446

641446-TRANSPARENT ECLAIRAGE PLATE

More information

Quantity required : 1

641340 - COUVERCLE FEU AR

10
P2R reference P2R reference 86163
Maker reference Maker reference 641340

641340-COVER LAMP AR

More information

Quantity required : 1

5A000157 - RONDELLE

11
P2R reference P2R reference 109270
Maker reference Maker reference 5A000157

5A000157 - RONDELLE

More information

Quantity required : 2

AMPOULE/LAMPE 12V 5W WEDGE T10 BLANCHE OEM PIAGGIO COMMON A LA RANGE-2920225

12
P2R reference P2R reference 139408
Maker reference Maker reference 2920225

AMPOULE/LAMPE 12V 5W WEDGE T10 BLANCHE OEM PIAGGIO COMMON A LA RANGE-2920225

More information

Quantity required : 1

SCREW CRUCIFORME (4X12) OEM PIAGGIO COMMON A LA RANGE-015996

13
P2R reference P2R reference 65408
Maker reference Maker reference 0159965

SCREW CRUCIFORME (4X12) OEM PIAGGIO COMMON A LA RANGE-015996

More information

Quantity required : 2

SCREW PARKER (3. 5X13) CRUCIFORME DE FAIRING OEM PIAGGIO COMMON A LA RANGE-008372

14
P2R reference P2R reference 63850
Maker reference Maker reference 0083725

SCREW PARKER (3. 5X13) CRUCIFORME DE FAIRING OEM PIAGGIO COMMON A LA RANGE-008372

More information

Quantity required : 2
