Vehicle Exploded View - VESPA VESPA 946 125 E5+ 13° Anniversario 2026 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

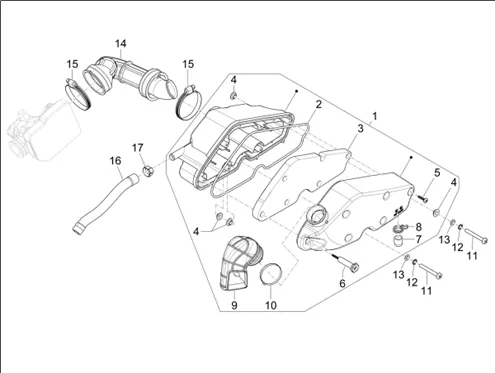

Moteur : 01.45 FILTRE À AIR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1349/Vespa_946_125_E5_13_Anniversario_2026_EMEA_01.45.png)
1 |
1A019292-HOUSING AIR FILTER COMPL. More informationQuantity required : 1 |
||||||
|
2 |
B018254-GASKET More informationQuantity required : 1 |
||||||
|
3 |
B0182130P-FILTER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/8/8/img/68888.jpg)
4 |
BUSH EN T (D5) MOLETEE CENTRAGE BOX A AIR OEM PIAGGIO COMMON A LA RANGE-830056 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/2/5/img/66025.jpg)
5 |
SCREW AUTOTARAUDEUSE (3X20) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-258146 More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/4/8/1/3/img/94813.jpg)
6 |
SCREW A HEAD MOLETEE AIR FILTER OEM PIAGGIO 125 PRIMAVERA, SPRINT 2013 >-B018204 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/7/0/1/img/68701.jpg)
7 |
PURGEUR HOUSING DE AIR FILTER OEM PIAGGIO COMMON A LA RANGE SCOOTER 4T ET MAXI SCOOTER-827831 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/9/5/img/72895.jpg)
8 |
CLAMP HOSE (D13) COOLING OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125-250-300-CM002910 More informationQuantity required : 1 |
||||||
|
9 |
1B012843-SUCTION TUBE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/1/7/img/66017.jpg)
10 |
HOSE CLAMP NYLON TYPE RILSAN 4, 8X270MM OEM PIAGGIO COMMON A LA RANGE-257134 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/4/8/img/65448.jpg)
11 |
SCREW CRUCIFORME (6X50) OEM PIAGGIO COMMON A TOUTE LA RANGE-018640 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/4/5/img/65345.jpg)
12 |
WASHER EVENTAIL (6, 6X11X0) OEM PIAGGO COMMON A LA RANGE-012533 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/7/img/63777.jpg)
13 |
WASHER PLATE (6X12X1) OEM PIAGGIO COMMON A LA RANGE-003056 More informationQuantity required : 2 |
||||||
|
14 |
1A025040-AIR BOX COUPLING More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/5/5/6/img/111556.jpg)
15 |
CLAMP SERRAGE TUBE 40-60 OEM PIAGGIO COMMON A LA RANGE-614188 More informationQuantity required : 2 |
||||||
|
16 |
1A000335-TUBE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/6/6/img/72866.jpg)
17 |
CLAMP HOSE (19. 8MM) OEM PIAGGIO COMMON A TOUTE LA RANGE-CM001904 More informationQuantity required : 1 |
