Vehicle Exploded View - VESPA VESPA 946 125 E5+ 13° Anniversario 2026 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

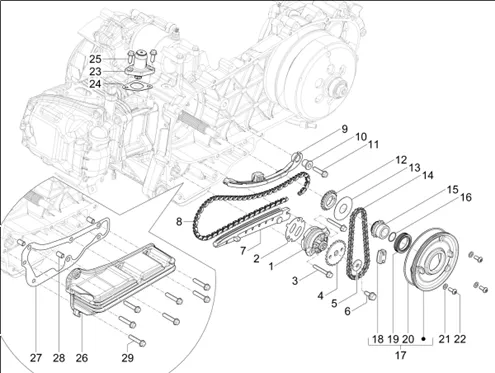

Moteur : 01.18 POMPE À HUILE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1349/Vespa_946_125_E5_13_Anniversario_2026_EMEA_01.18.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/4/9/img/68849.jpg)
1 |
OIL PUMP OEM PIAGGIO 125-250-300 MP3, BEVERLY, X7, VESPA GTS, 125-250 X8, X-EVO, X9, 125-300 YOURBAN, 125 FLY, LIBERTY, VESPA LX/GILERA NEXUS/APRILIA ATLANTIC, SCARABEO-82948R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/6/8/8/img/72688.JPG)
2 |
GASKET OIL PUMP OEM PIAGGIO 125 FLY, LIBERTY, MEDLEY, GTS, PRIMAVERA 2012 >-B015460 More informationQuantity required : 1 |
||||||
3 |
829593-BOLT More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/8/2/img/66182.jpg)
4 |
SPROCKET OIL PUMP OEM PIAGGIO 50-125-300 COMMON A LA RANGE-287913 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/0/1/img/66501.jpg)
5 |
WASHER SPRING (6. 4X20X2) OEM PIAGGIO COMMON A LA RANGE-436695 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/0/6/img/72706.jpg)
6 |
SCREW FLANGE TH (6X14) OEM PIAGGIO COMMON A LA RANGE-B016426 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/3/3/4/0/img/93340.jpg)
7 |
PATIN TENDEUR DE CHAIN DE TIMING OEM PIAGGIO 125 LIBERTY, PRIMAVERA, SPRINT 2014 > 879459 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/5/3/9/0/img/75390.jpg)
8 |
CHAIN DE TIMING OEM PIAGGIO 125 LIBERTY, PRIMAVERA, SPRINT 2014 > 1A003586R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/6/1/9/img/139619.jpg)
9 |
ROD TENDEUR DE CHAIN TIMING OEM PIAGGIO 125 MEDLEY, LIBERTY, PRIMAVERA, SPRINT 2019 >-1A006293 More informationQuantity required : 1 |
||||||
|
10 |
1A021815R-CHAIN TIGHTNING ROD SPACER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/2/0/img/72720.jpg)
11 |
SCREW FLANGE TH (6X25) OEM PIAGGIO COMMON A LA RANGE/KICK DERBI 50 SENDA-B016774 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/7/0/0/img/68700_20251124134345_20251124143304.JPG)
12 |
SPROCKET DE CHAIN DE TIMING OEM PIAGGIO COMMON A LA RANGE-82782R More informationQuantity required : 1 |
||||||
|
13 |
1A018661-WASHER GASKET-SPI More informationQuantity required : 1 |
||||||
|
14 |
B015459-CHAIN PUMP OIL More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/7/0/3/img/68703.jpg)
15 |
SPROCKET ENTRAINEMENT OF PUMP A OIL OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125-250-300 CC-82783R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/6/8/2/img/72682.jpg)
16 |
O-RING SPROCKET DE CONTROL OF PUMP A OIL OEM PIAGGIO 125 FLY, LIBERTY, MEDLEY, GTS, PRIMAVERA 2013 >/125 SR GT COMPACT APRILIA 2021 >-B015451 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/3/8/7/img/139387.jpg)
17 |
COVER DITRIBUTION OEM PIAGGIO 125 FLY, LIBERTY, MEDLEY, GTS, PRIMAVERA 2013 >-1A0033175 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/4/7/img/66447.JPG)
18 |
BUFFER DE CHAIN OF PUMP A OIL PIAGGIO COMMON A LA RANGE-434345 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/2/7/7/img/127277.jpg)
19 |
OIL SEAL (24X35X7) OEM PIAGGIO COMMON A LA RANGE-1A005743 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/6/8/1/img/72681.jpg)
20 |
O-RING COVER TIMING OEM PIAGGIO 125 FLY, LIBERTY, MEDLEY, PRIMAVERA, SPRINT 2013 >-B015449 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/1/8/6/7/2/img/218672.JPG)
21 |
WASHER PLATE (D5) CUIVRE OEM PIAGGIO COMMON A LA RANGE 1A027731 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/6/4/8/img/72648.jpg)
22 |
SCREW TORX (5X12) OEM PIAGGIO COMMON A LA RANGE-B014598 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/8/6/1/6/img/178616.jpg)
23 |
TENDEUR DE CHAIN TIMING OEM PIAGGIO COMMON A LA RANGE-1A019253 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/5/4/6/img/69546.jpg)
24 |
GASKET OF TENDEUR CHAIN DE TIMING OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-847928 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/2/3/img/72723.jpg)
25 |
SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-B016777 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/4/5/1/5/img/94515.jpg)
26 |
CASING OIL OEM PIAGGIO 125-150 LIBERTY, FLY, MEDLEY, GTS, PRIMAVERA, SPRINT 2012 >/SR COMPACT GT APRILIA 2021 >-B013437 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/4/5/5/2/img/94552.jpg)
27 |
GASKET OF CASING OIL OEM PIAGGIO 125 FLY, LIBERTY, MEDLEY, GTS, PRIMAVERA 2012 >/SR GT COMPACT APRILI A 2021 >-B014152 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/4/2/img/66142.jpg)
28 |
PION DE CENTRAGE (7, 5X12) OEM PIAGGIO COMMON A LA RANGE-277916 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/2/5/img/72725.jpg)
29 |
SCREW FLANGE TH (6X30) OEM PIAGGIO COMMON A TOUTE LA RANGE-B016792 More informationQuantity required : 7 |
