Vehicle Exploded View - VESPA VESPA 946 125 E5+ 13° Anniversario 2026 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

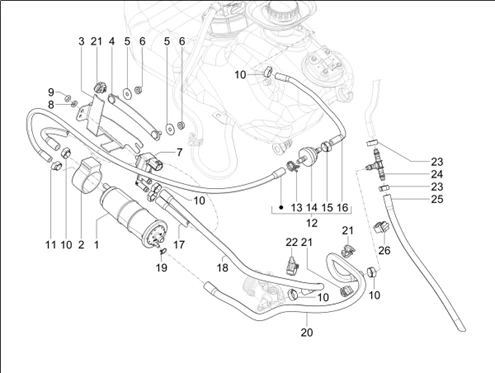

Châssis - parties plastiques - carrosseries : 02.61 SYSTÈME ANTI-ÉVAPORATION
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1349/Vespa_946_125_E5_13_Anniversario_2026_EMEA_02.61.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/4/7/3/3/img/174733.jpg)
1 |
CANISTER OEM PIAGGIO 50-125 COMMON A LA RANGE 2021 >-1B002848 More informationQuantity required : 1 |
||||||
2 |
1B002849 PLATE More informationQuantity required : 1 |
||||||
|
3 |
1B011789-FLANGE D'ABSORBEUR More informationQuantity required : 1 |
||||||
|
4 |
1B000585-BRACKET More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/5/6/img/65356.jpg)
5 |
WASHER 6, 2X20X1 OEM PIAGGIO COMMON A TOUTE LA RANGE-013092 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/4/1/img/65941.jpg)
6 |
NUT FLANGE (6) OEM PIAGGIO COMMON A LA RANGE-219277 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/4/3/0/6/img/174306.jpg)
7 |
VALVE SOLENOIDE OEM PIAGGIO COMMON A LA RANGE-1B008603 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/6/img/65416.jpg)
8 |
WASHER ELASTIC (6, 4X11, 8X1) OEM PIAGGIO COMMON A LA RANGE-016406 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/7/4/img/65474.jpg)
9 |
NUT M6 OEM PIAGGIO COMMON A LA RANGE-020206 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/7/5/img/72875.jpg)
10 |
CLAMP (14. 5MM) SERRAGE TUBE OEM PIAGGIO COMMON A LA RANGE-CM001914 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/6/3/img/72863.jpg)
11 |
CLAMP SERRE TUBE OEM PIAGGIO COMMON A LA RANGE-CM001901 More informationQuantity required : 1 |
||||||
|
12 |
1B012216-RENIFLARD COMPLETE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/9/2/img/72892.jpg)
13 |
HOSE CLAMP HOSE (9, 4X12) OEM PIAGGIO COMMON A LA RANGE-CM002905 More informationQuantity required : 1 |
||||||
|
14 |
VALVE OF PRESSURE SYSTEME ANTI-EVAPORATION OEM PIAGGIO EURO 5 COMMON A LA RANGE-CM292102 More informationQuantity required : 1 |
||||||
|
15 |
CLAMP (14. 5MM) SERRAGE TUBE OEM PIAGGIO COMMON A LA RANGE-CM001914 More informationQuantity required : 1 |
||||||
|
16 |
CM183307-HOSE More informationQuantity required : 1 |
||||||
|
17 |
|
||||||
|
18 |
CM183307-HOSE More informationQuantity required : 1 |
||||||
|
19 |
CM283701 CLAMP More informationQuantity required : 1 |
||||||
|
20 |
CM283456-HOSE CANISTER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/1/9/img/72919.jpg)
21 |
CLIPS ATTACHE HARNESS OEM PIAGGIO COMMON A LA RANGE-CM013203 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/1/0/img/72910.jpg)
22 |
CLAMP CLIPS OEM PIAGGIO COMMON A LA RANGE-CM006910 More informationQuantity required : 1 |
||||||
|
23 |
CLAMP (14. 5MM) SERRAGE TUBE OEM PIAGGIO COMMON A LA RANGE-CM001914 More informationQuantity required : 2 |
||||||
|
24 |
2B002254 FITTING More informationQuantity required : 1 |
||||||
|
25 |
CM001444-HOSE RENIFLARD More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/1/7/img/72917.jpg)
26 |
PINCE CLIPS FITTING KIT HOSE OEM PIAGGIO COMMON A LA RANGE-CM013201 More informationQuantity required : 1 |
