Vehicle Exploded View - VESPA VESPA 946 125 E5+ 13° Anniversario 2026 (EMEA) VESPA

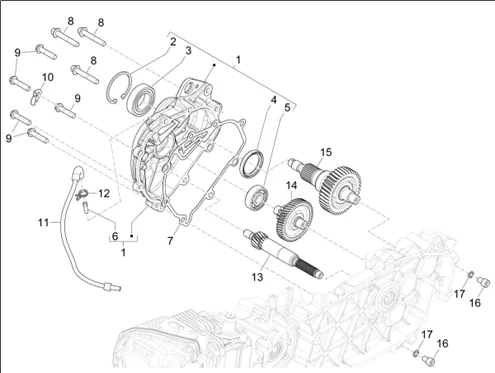

Moteur : 01.25 ENSEMBLE RÉDUCTEUR
Ensemble réducteur
Search
B0160435 - COUVERCLE

1
P2R reference P2R reference 94676
Maker reference Maker reference B0160435

B0160435-COVER

More information

Quantity required : 1

CLIPS/CIRCLIPS SHAFT DE TRANSMISSION OEM PIAGGIO COMMON A LA RANGE-829206

2
P2R reference P2R reference 68825
Maker reference Maker reference 829206

CLIPS/CIRCLIPS SHAFT DE TRANSMISSION OEM PIAGGIO COMMON A LA RANGE-829206

More information

Quantity required : 1

BEARING (30X55X13) DE TRANSMISSION OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-1A005376R

3
P2R reference P2R reference 139393
Maker reference Maker reference 1A005376R

BEARING (30X55X13) DE TRANSMISSION OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-1A005376R

More information

Quantity required : 1

B015440 - BAGUE D'ETANCHEITE 38X50X7

4
P2R reference P2R reference 72675
Maker reference Maker reference B015440

B015440-BUSH D'ETANCHEITE 38X50X7

More information

Quantity required : 1

BEARING (15X42X13) RADIAL ENSEMBLE REDUCTEUR OEM COMMON A LA RANGE PIAGGIO-83026R

5
P2R reference P2R reference 92847
Maker reference Maker reference 83026R

BEARING (15X42X13) RADIAL ENSEMBLE REDUCTEUR OEM COMMON A LA RANGE PIAGGIO-83026R

More information

Quantity required : 1

B016412 - RACCORD

6
P2R reference P2R reference 218674
Maker reference Maker reference B016412

B016412-FITTING

More information

Quantity required : 1

GASKET COVER DE REDUCTEUR OEM PIAGGIO 125 2012 > COMMON A LA RANGE-B016456

7
P2R reference P2R reference 94697
Maker reference Maker reference B016456

GASKET COVER DE REDUCTEUR OEM PIAGGIO 125 2012 > COMMON A LA RANGE-B016456

More information

Quantity required : 1

SCREW FLANGE TH (8X50) OEM PIAGGIO COMMON A LA RANGE-B016773

8
P2R reference P2R reference 72719
Maker reference Maker reference B016773

SCREW FLANGE TH (8X50) OEM PIAGGIO COMMON A LA RANGE-B016773

More information

Quantity required : 3

1A000769 - VIS

9
P2R reference P2R reference 75325
Maker reference Maker reference 1A000769

1A000769-SCREW

More information

Quantity required : 5

1A000482 - COLLIER

10
P2R reference P2R reference 75310
Maker reference Maker reference 1A000482

1A000482-CLAMP

More information

Quantity required : 1

B018670 - TUBE

11
P2R reference P2R reference 72788
Maker reference Maker reference B018670

B018670-TUBE

More information

Quantity required : 1

HOSE CLAMP HOSE (10X13) OEM PIAGGIO COMMON A LA RANGE-CM002908

12
P2R reference P2R reference 72894
Maker reference Maker reference CM002908

HOSE CLAMP HOSE (10X13) OEM PIAGGIO COMMON A LA RANGE-CM002908

More information

Quantity required : 1

B017168 - ARBRE DE POULIE

13
P2R reference P2R reference 140619
Maker reference Maker reference B017168

B017168-SHAFT DE PULLEY

More information

Quantity required : 1

B0167544 - INTERMEDIATE SHAFT WITH I.P.

14
P2R reference P2R reference 204630
Maker reference Maker reference B0167544

B0167544-INTERMEDIATE SHAFT WITH I. P.

More information

Quantity required : 1

SPINDLE REAR WHEEL OEM PIAGGIO 125 FLY 4T 3V 2012 > 2013-B0167566

15
P2R reference P2R reference 149513
Maker reference Maker reference B0167566

SPINDLE REAR WHEEL OEM PIAGGIO 125 FLY 4T 3V 2012 > 2013-B0167566

More information

Quantity required : 1

SCREW BTR (8X12) OEM PIAGGIO COMMON A LA RANGE-269755

16
P2R reference P2R reference 66085
Maker reference Maker reference 269755

SCREW BTR (8X12) OEM PIAGGIO COMMON A LA RANGE-269755

More information

Quantity required : 2

GASKET OF VIDANGE CASING DE TRANSMISSION (8, 2X12X1) OEM PIAGGIO COMMON A TOUTE LA RANGE-485703-X000D

17
P2R reference P2R reference 66689
Maker reference Maker reference 485703

GASKET OF VIDANGE CASING DE TRANSMISSION (8, 2X12X1) OEM PIAGGIO COMMON A TOUTE LA RANGE-485703-X000D

More information

Quantity required : 2
