Vehicle Exploded View - VESPA VESPA 946 125 E5+ 13° Anniversario 2026 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

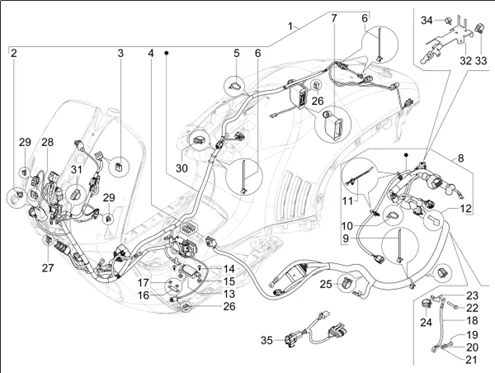

Circuit électrique : 06.08 FAISCEAU DE CÂBLES PRINCIPAL
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1349/Vespa_946_125_E5_13_Anniversario_2026_EMEA_06.08.png)
1 |
1D004970-GROUP CABLES FRAME More informationQuantity required : 1 |
||||||
|
2 |
1D000129-GASKET More informationQuantity required : 1 |
||||||
|
3 |
252605-TERMINAL More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/5/7/4/5/img/95745.jpg)
4 |
BLADE FUSE MINI 7. 5A OEM PIAGGIO COMMON A LA RANGE-CM080905 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/5/7/4/6/img/95746.jpg)
4 |
BLADE FUSE MINI 10A OEM PIAGGIO COMMON A LA RANGE-CM080906 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/5/7/4/8/img/95748.jpg)
4 |
BLADE FUSE MINI 20A OEM PIAGGIO COMMON A LA RANGE-CM080908 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/5/7/4/4/img/95744.jpg)
4 |
BLADE FUSE MINI 5A OEM PIAGGIO COMMON A LA RANGE-CM080904 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/4/2/img/65742.jpg)
5 |
HOSE CLAMP NYLON TYPE RILSAN 180 MM OEM PIAGGIO COMMON A LA RANGE-145298 More informationQuantity required : 3 |
||||||
|
6 |
640879-CLAMP More informationQuantity required : 4 |
||||||
|
7 |
860746-CAPUCHON ISOLANT More informationQuantity required : 1 |
||||||
|
8 |
1D004971-WIRING HARNESS ENGINE More informationQuantity required : 1 |
||||||
|
9 |
640879-CLAMP More informationQuantity required : 1 |
||||||
|
10 |
HOSE CLAMP NYLON TYPE RILSAN 180 MM OEM PIAGGIO COMMON A LA RANGE-145298 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/5/9/3/img/127593.jpg)
11 |
CLAMP SERRE CABLE OEM PIAGGIO COMMON A LA RANGE-1D001143 More informationQuantity required : 2 |
||||||
|
12 |
583971-CAPUCHON More informationQuantity required : 1 |
||||||
|
13 |
643461-P/FUSIBLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/5/8/img/73358.jpg)
14 |
SCREW TORX (4, 2X13) AUTOTARAUDEUSE OEM PIAGGIO COMMON A LA RANGE-CM178603 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/0/1/9/img/109019.jpg)
15 |
AGRAPHE/CHEVILLE A EXPENSION OEM PIAGGIO COMMON A LA RANGE-157716 More informationQuantity required : 2 |
||||||
|
16 |
643492-SHUNT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/0/8/4/img/111084.jpg)
17 |
NUT M5 OEM PIAGGIO COMMON A LA RANGE-804457 More informationQuantity required : 2 |
||||||
|
18 |
1D000144-CABLE More informationQuantity required : 1 |
||||||
|
19 |
641204-BOLT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/6/img/65416.jpg)
20 |
WASHER ELASTIC (6, 4X11, 8X1) OEM PIAGGIO COMMON A LA RANGE-016406 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/7/img/63777.jpg)
21 |
WASHER PLATE (6X12X1) OEM PIAGGIO COMMON A LA RANGE-003056 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/6/7/img/66367.jpg)
22 |
SCREW FLANGE TH (6X35) OEM PIAGGIO COMMON A LA RANGE-414838 More informationQuantity required : 1 |
||||||
|
23 |
1D000049-PLATE BRACKET SPRING More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/1/1/img/72911.jpg)
24 |
PINCE RETENUE TUYAUX OEM PIAGGIO COMMON A LA RANGE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/0/5/img/72905.jpg)
25 |
CLIPS ATTACHE FASCEAU ORINE PIAGGIO COMMON A LA RANGE-CM006903 More informationQuantity required : 1 |
||||||
|
26 |
B005629 SPRING More informationQuantity required : 2 |
||||||
|
27 |
584002-CLIP More informationQuantity required : 1 |
||||||
|
28 |
641769-SPRING More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/5/7/5/5/img/85755.jpg)
29 |
CLIPS CONNECTEUR OEM PIAGGIO COMMON A LA RANGE-639560 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/1/8/img/72918.jpg)
30 |
CLIPS ATTACHE HARNESS OEM PIAGGIO COMMON A LA RANGE-CM013203 More informationQuantity required : 2 |
||||||
|
31 |
PINCE RETENUE TUYAUX OEM PIAGGIO COMMON A LA RANGE More informationQuantity required : 1 |
||||||
|
32 |
1B012055-CALIPER More informationQuantity required : 1 |
||||||
|
33 |
CM006911-SPRING More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/6/7/img/65967.jpg)
34 |
CLIPS SPRING (D17) OEM PIAGGIO COMMON A LA RANGE-231590 More informationQuantity required : 1 |
||||||
|
35 |
680178-WIRING HARNESS More informationQuantity required : 1 |
