Vehicle Exploded View - VESPA VESPA 946 125 E5+ 13° Anniversario 2026 (EMEA) VESPA

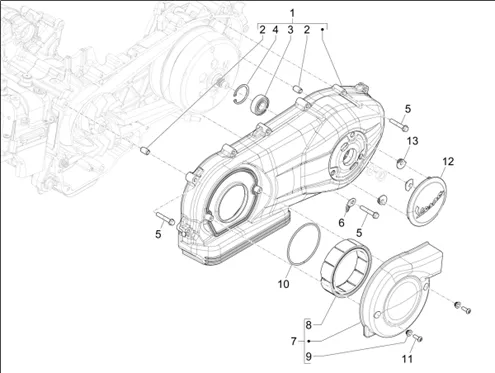

Moteur : 01.15 COUVERCLE CARTER - REFOIDISSEMENT CARTER
Couvercle carter - Refoidissement carter
Search
1A0293735 - COUVERCLE DE LA TRANSMISSION COMPLET

1
P2R reference P2R reference 226809
Maker reference Maker reference 1A0293735

1A0293735-COVER DE LA TRANSMISSION COMPLETE

More information

Quantity required : 1

BUSH DE CENTRAGE (9, 5X15) CASING OEM PIAGGIO COMMON ALA RANGE-B015956

2
P2R reference P2R reference 72696
Maker reference Maker reference B015956

BUSH DE CENTRAGE (9, 5X15) CASING OEM PIAGGIO COMMON ALA RANGE-B015956

More information

Quantity required : 2

BEARING (15X35X11) OEM PIAGGIO COMMON A TOUTE LA RANGE MAXI SCOOTER 125-250-300-4789853

3
P2R reference P2R reference 66571
Maker reference Maker reference 4789853

BEARING (15X35X11) OEM PIAGGIO COMMON A TOUTE LA RANGE MAXI SCOOTER 125-250-300-4789853

More information

Quantity required : 1

CIRCLIPS (D = 38) OEM PIAGGIO COMMON A TOUTE LA RANGE-006635

4
P2R reference P2R reference 63823
Maker reference Maker reference 0066355

CIRCLIPS (D = 38) OEM PIAGGIO COMMON A TOUTE LA RANGE-006635

More information

Quantity required : 1

SCREW FLANGE TH (6X35) OEM PIAGGIO COMMON A LA RANGE-414838

5
P2R reference P2R reference 66367
Maker reference Maker reference 414838

SCREW FLANGE TH (6X35) OEM PIAGGIO COMMON A LA RANGE-414838

More information

Quantity required : 9

CLAMP OF FITTING KIT GUIDE CABLE OEM PIAGGIO COMMON A LA RANGE-844964

6
P2R reference P2R reference 69338
Maker reference Maker reference 844964

CLAMP OF FITTING KIT GUIDE CABLE OEM PIAGGIO COMMON A LA RANGE-844964

More information

Quantity required : 1

B018342 - COUVERCLE DE REFROIDISSEMENT

7
P2R reference P2R reference 94824
Maker reference Maker reference B018342

B018342-COVER DE COOLING

More information

Quantity required : 1

B018345 - FILTRE A AIR

8
P2R reference P2R reference 94825
Maker reference Maker reference B018345

B018345-AIR FILTER

More information

Quantity required : 1

B015908 - BAGUE

9
P2R reference P2R reference 94670
Maker reference Maker reference B015908

B015908-BUSH

More information

Quantity required : 2

1A001027 - JOINT

10
P2R reference P2R reference 75337
Maker reference Maker reference 1A001027

1A001027-GASKET

More information

Quantity required : 1

SCREW BTR HEAD BOMBEE (5X14) OEM PIAGGIO COMMON A LA RANGE-B016455

11
P2R reference P2R reference 72707
Maker reference Maker reference B016455

SCREW BTR HEAD BOMBEE (5X14) OEM PIAGGIO COMMON A LA RANGE-B016455

More information

Quantity required : 2

1A029371 - CACHE DU COUVERCLE DE LA TRANSMISSION

12
P2R reference P2R reference 226810
Maker reference Maker reference 1A029371

1A029371-COVER DU COVER DE LA TRANSMISSION

More information

Quantity required : 1

BUFFER/INSERT ARRET MOUNTING COVER TRANMISSION OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125-250-300 CC-871458

13
P2R reference P2R reference 70378
Maker reference Maker reference 871458

BUFFER/INSERT ARRET MOUNTING COVER TRANMISSION OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125-250-300 CC-871458

More information

Quantity required : 3
