Vehicle Exploded View - VESPA VESPA 946 125 E5+ 13° Anniversario 2026 (EMEA) VESPA

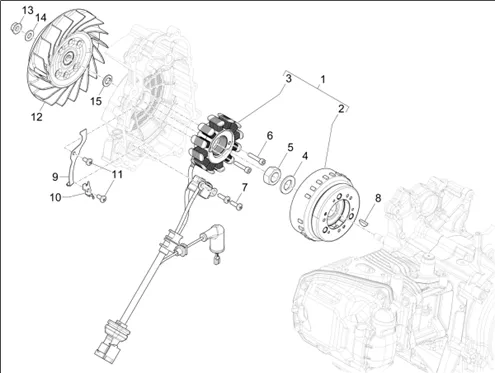

Moteur : 01.21 VOLANT MAGNETIQUE
Volant magnetique
Search
1A006595 - VOLANT MAGNET.

1
P2R reference P2R reference 146239
Maker reference Maker reference 1A006595
Replaced by référence Replaced by référence 166562

1A006595-VOLANT MAGNET.

More information

Quantity required : 1

1A006480 - ROTOR COMPLET AVEC BUSE

2
P2R reference P2R reference 146238
Maker reference Maker reference 1A006480

1A006480-ROTOR COMPLETE WITH BUSE

More information

Quantity required : 1

STATOR OEM PIAGGIO 125 LIBERTY, PRIMAVERA, SPRINT 2016 > 2020-680205

3
P2R reference P2R reference 92163
Maker reference Maker reference 680205

STATOR OEM PIAGGIO 125 LIBERTY, PRIMAVERA, SPRINT 2016 > 2020-680205

More information

Quantity required : 1

B018464 - RONDELLE

4
P2R reference P2R reference 94829
Maker reference Maker reference B018464

B018464-WASHER

More information

Quantity required : 1

841047 - ECROU

5
P2R reference P2R reference 92941
Maker reference Maker reference 841047

841047-NUT

More information

Quantity required : 1

SCREW BTR (5X25) WITH BRAKE NET THREAD OEM PIAGGIO COMMON A LA RANGE-1A003115

6
P2R reference P2R reference 127168
Maker reference Maker reference 1A003115

SCREW BTR (5X25) WITH BRAKE NET THREAD OEM PIAGGIO COMMON A LA RANGE-1A003115

More information

Quantity required : 2

SCREW CRUCIFORME (5X16) OEM PIAGGIO COMMON A LA RANGE-1A003109

7
P2R reference P2R reference 127167
Maker reference Maker reference 1A003109

SCREW CRUCIFORME (5X16) OEM PIAGGIO COMMON A LA RANGE-1A003109

More information

Quantity required : 2

CLAVETTE IGNITION OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-000097

8
P2R reference P2R reference 63674
Maker reference Maker reference 0000975

CLAVETTE IGNITION OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-000097

More information

Quantity required : 1

B018105 - PLAQUETTE

9
P2R reference P2R reference 94806
Maker reference Maker reference B018105

B018105-PLATE

More information

Quantity required : 1

B018106 - PLAQUETTE

10
P2R reference P2R reference 94807
Maker reference Maker reference B018106

B018106-PLATE

More information

Quantity required : 1

1A003111 - VIS M5X10

11
P2R reference P2R reference 109024
Maker reference Maker reference 1A003111

SCREW CRUCIFORME (5X10) OEM PIAGGIO COMMON A LA RANGE-1A003111

More information

Quantity required : 2

TURBINE/VENTILATEUR IGNITION OEM PIAGGIO 125-150 FLY, LIBERTY, PRIMAVERA, SPRINT 2013 >-1A001379

12
P2R reference P2R reference 75350
Maker reference Maker reference 1A001379

TURBINE/VENTILATEUR IGNITION OEM PIAGGIO 125-150 FLY, LIBERTY, PRIMAVERA, SPRINT 2013 >-1A001379

More information

Quantity required : 1

NUT FLANGE M8 X 1. 25 COMMON A LA RANGE PIAGGIO-874557

13
P2R reference P2R reference 70536
Maker reference Maker reference 874557

NUT FLANGE M8 X 1. 25 COMMON A LA RANGE PIAGGIO-874557

More information

Quantity required : 1

14
P2R reference P2R reference
Maker reference Maker reference 0137765

B015807 - RONDELLE

15
P2R reference P2R reference 94664
Maker reference Maker reference B015807

B015807-WASHER

More information

Quantity required : 1
